Air Flow Capacity Rated Pressure
74CFM 125PSI
$3,999.00
Mon - Fri 8AM - 5PM EST
Customer Service Contact Email

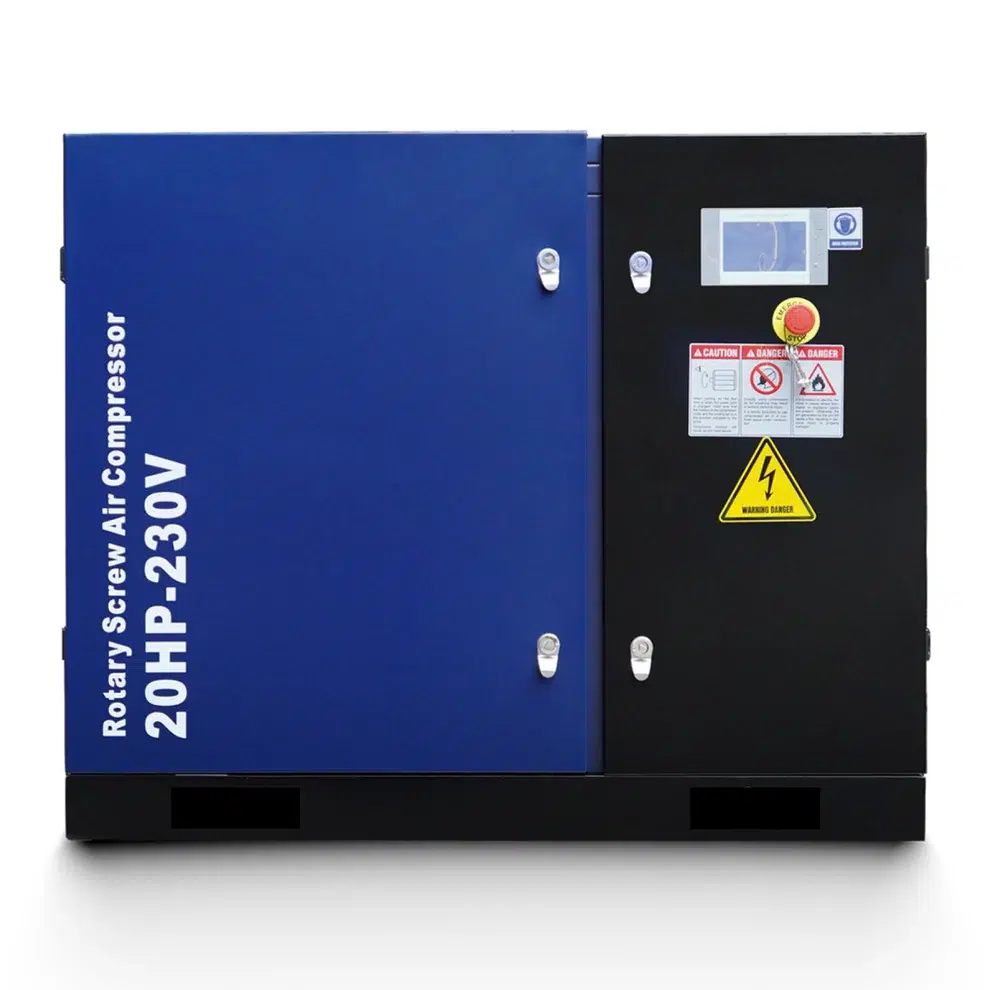

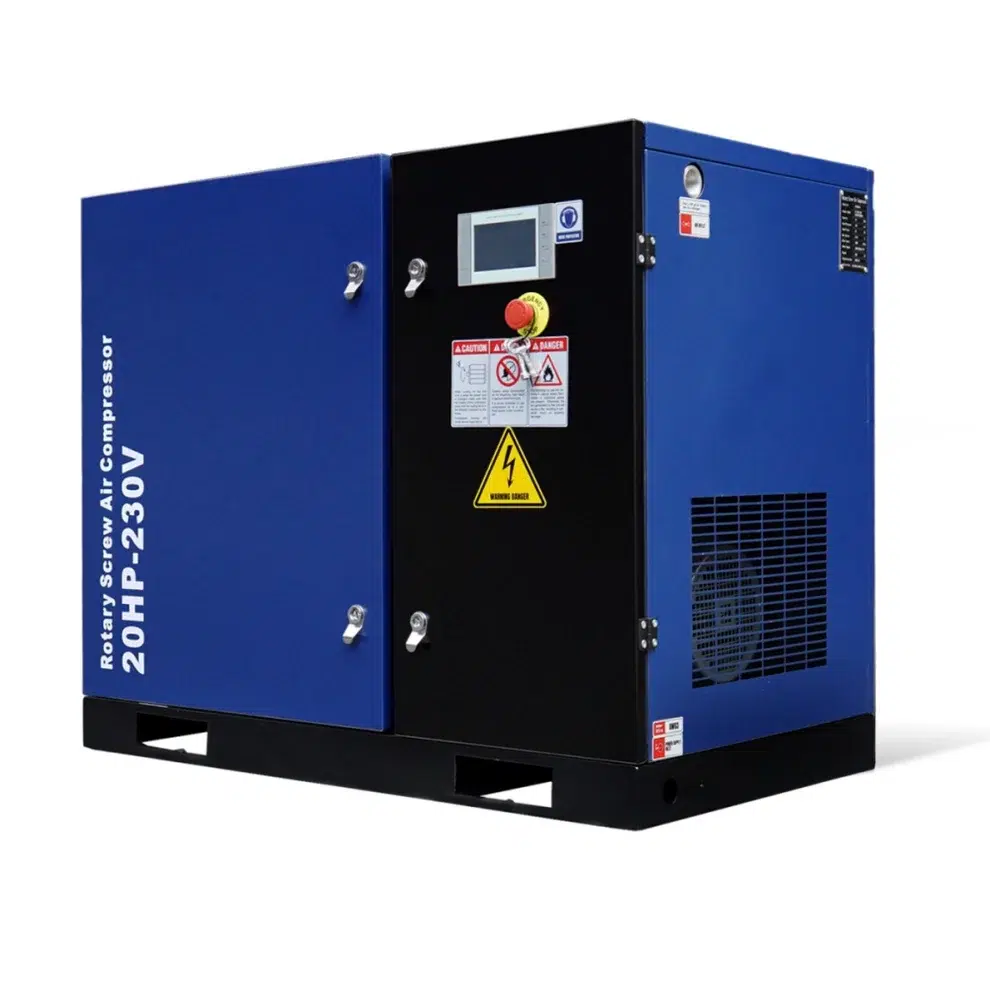

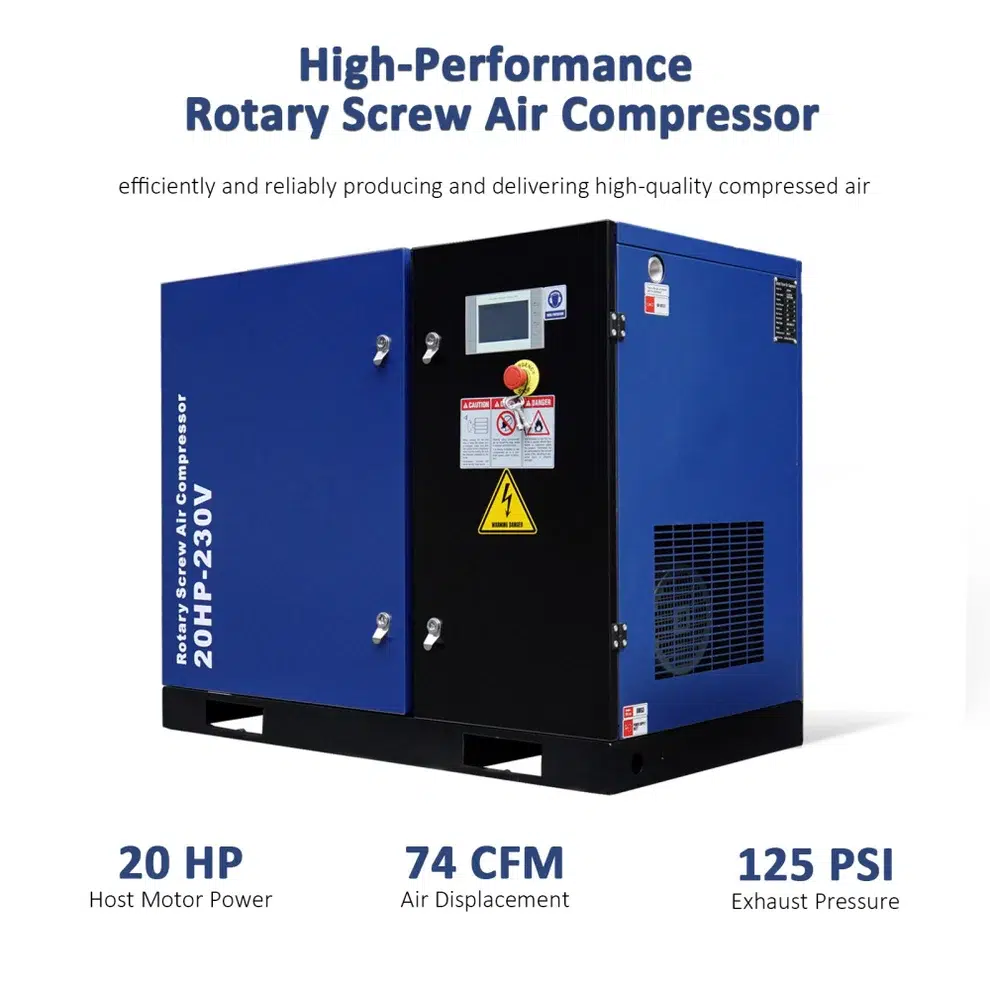

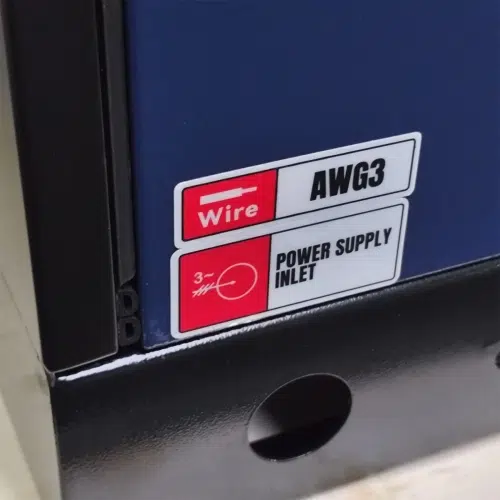

Meet your production demands with our industrial-grade 20HP rotary screw air compressor. Delivering a robust 74 CFM at 125 PSI, this heavy-duty, fixed-speed system is engineered for continuous, reliable performance in demanding facilities. Optimized for efficiency with 230V 3-phase 60Hz power.

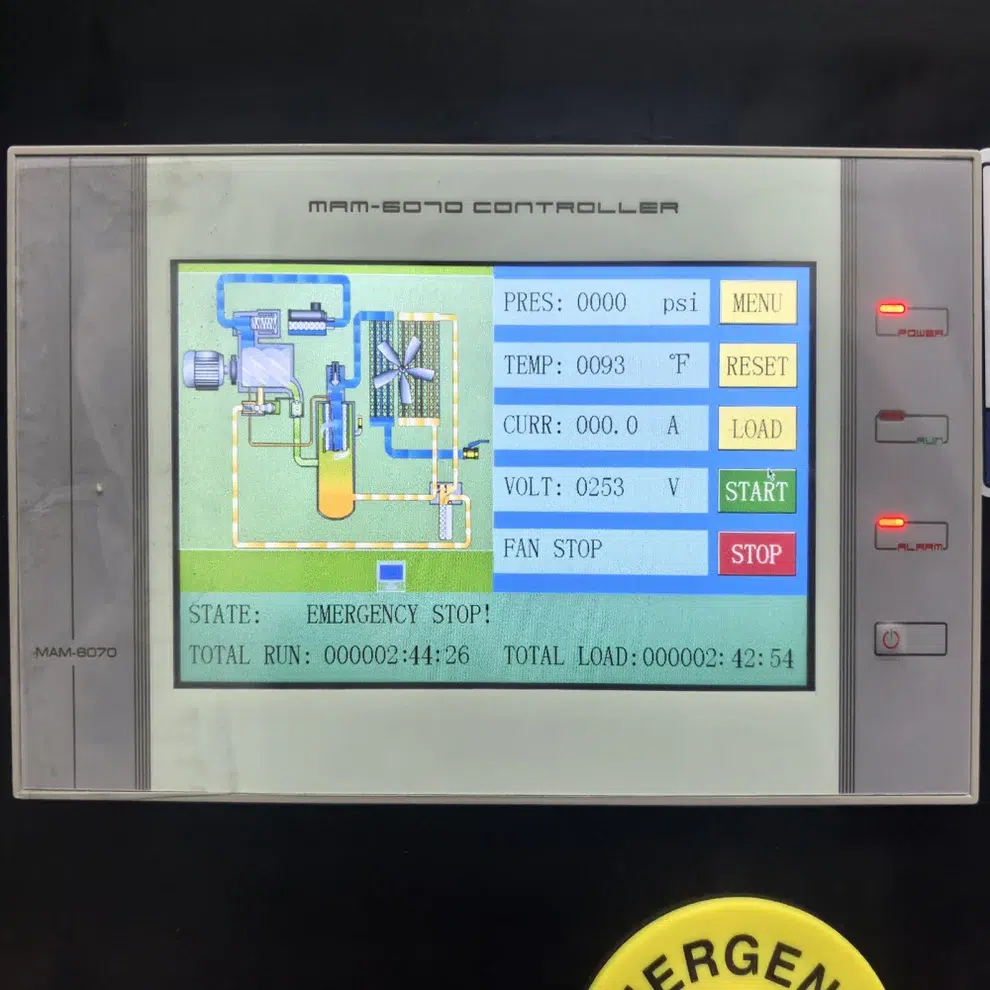

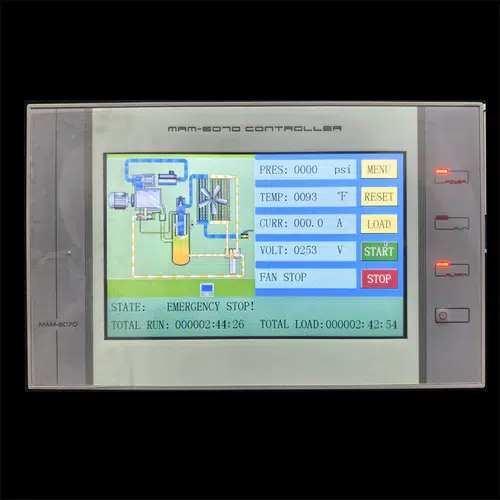

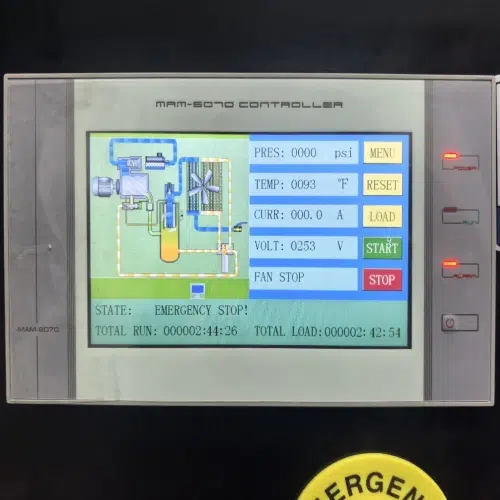

The controller with intuitive LCD interface for real-time parameter display. Simplified navigation enables quick setup. Features comprehensive safety protection with alarms for overloads and high temperatures. Proactive maintenance alerts prevent downtime and extend compressor lifespan.

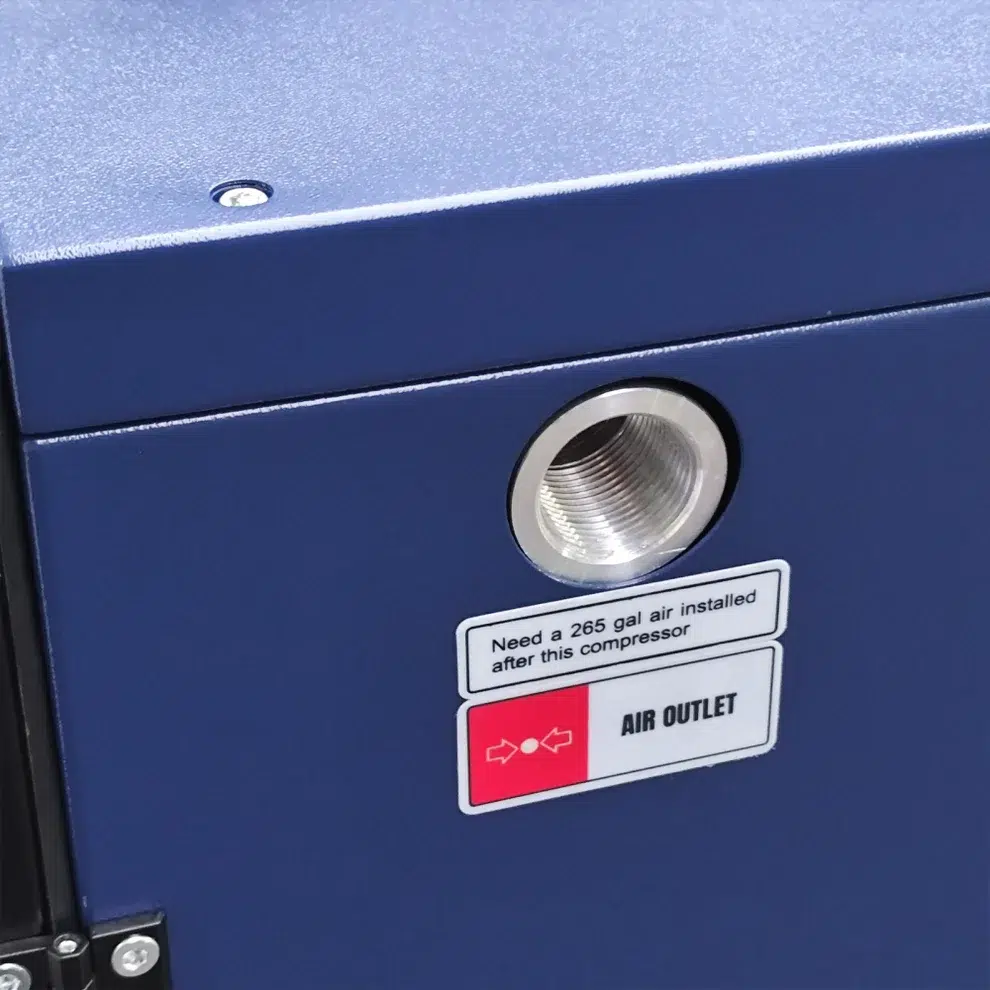

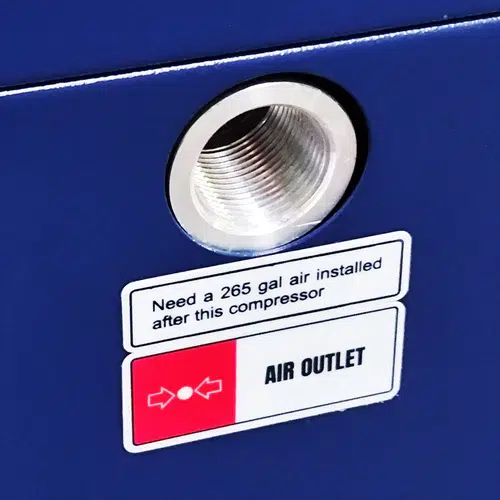

Air Outlet Thread: 1" NPT.

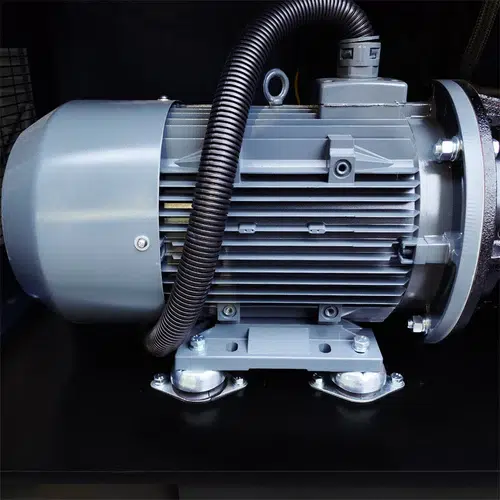

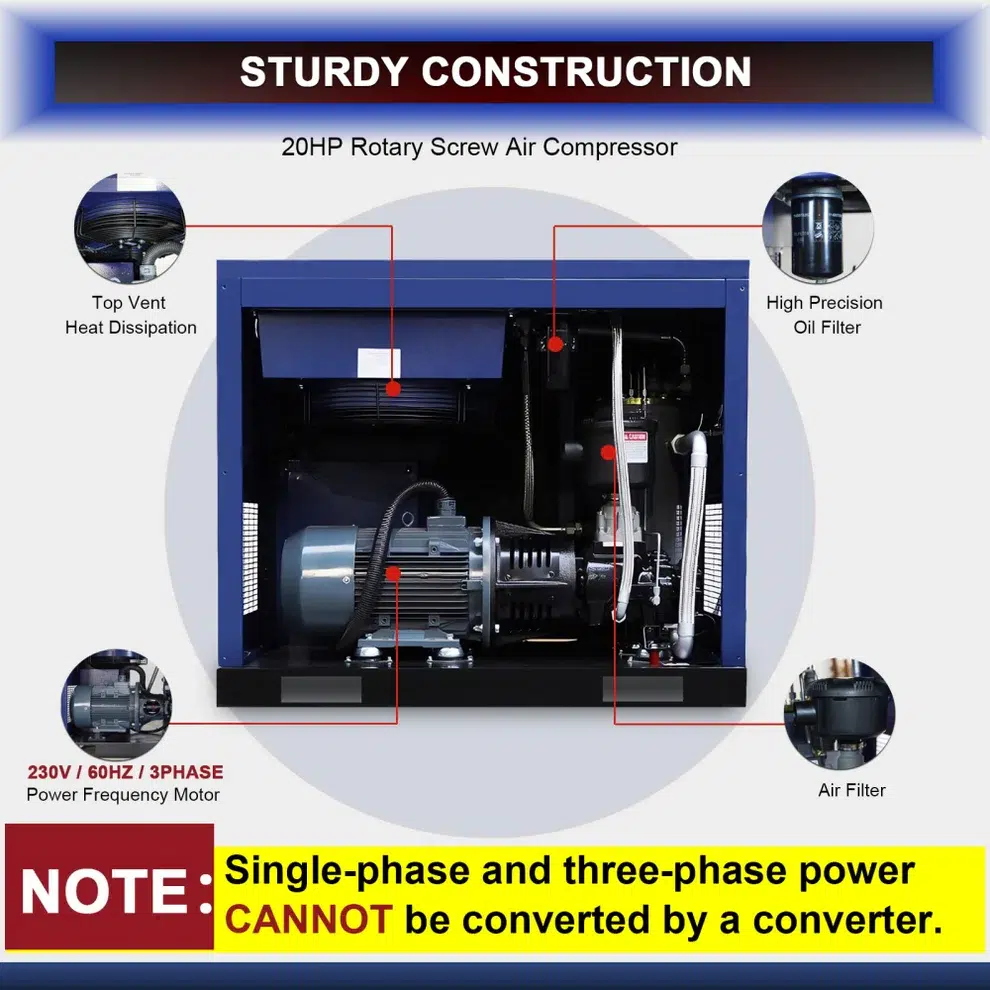

The motor and airend are directly connected via a coupling, ensuring 100% power transmission with no energy loss from belt slippage. This robust design eliminates the need for routine belt maintenance and provides exceptional reliability.

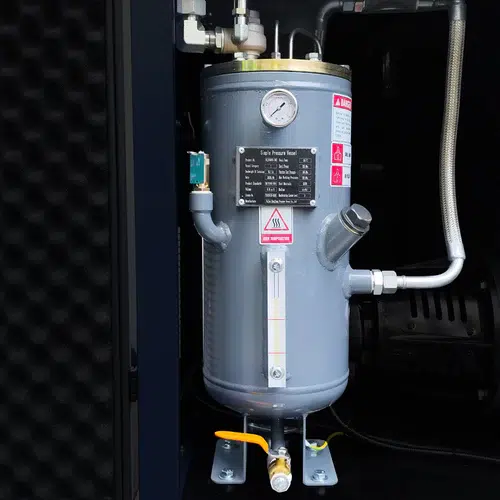

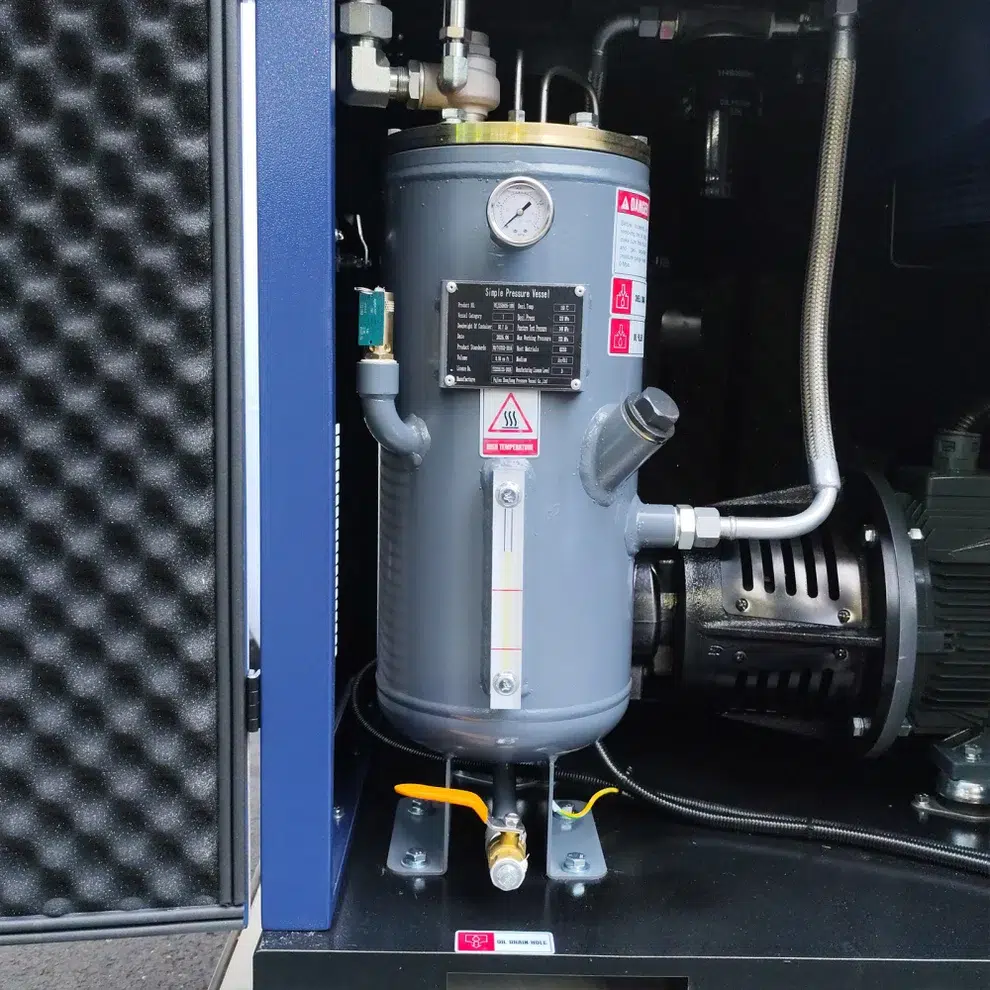

The oil receiver tank ensures highly efficient oil-air separation and delivers cleaner, drier compressed air. Its robust construction guarantees minimal pressure drop, contributing directly to reduced energy consumption and stable system pressure.

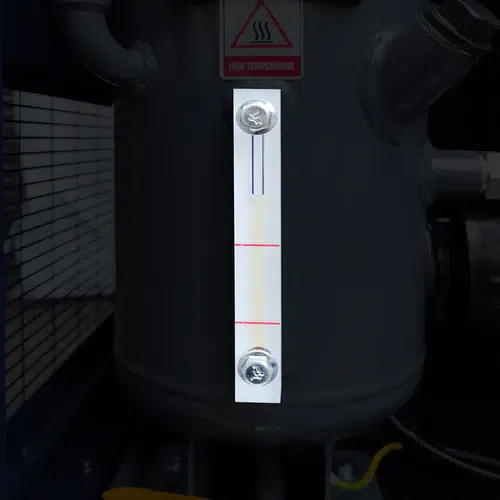

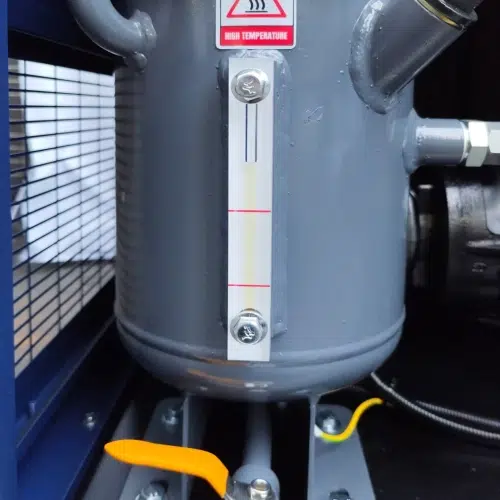

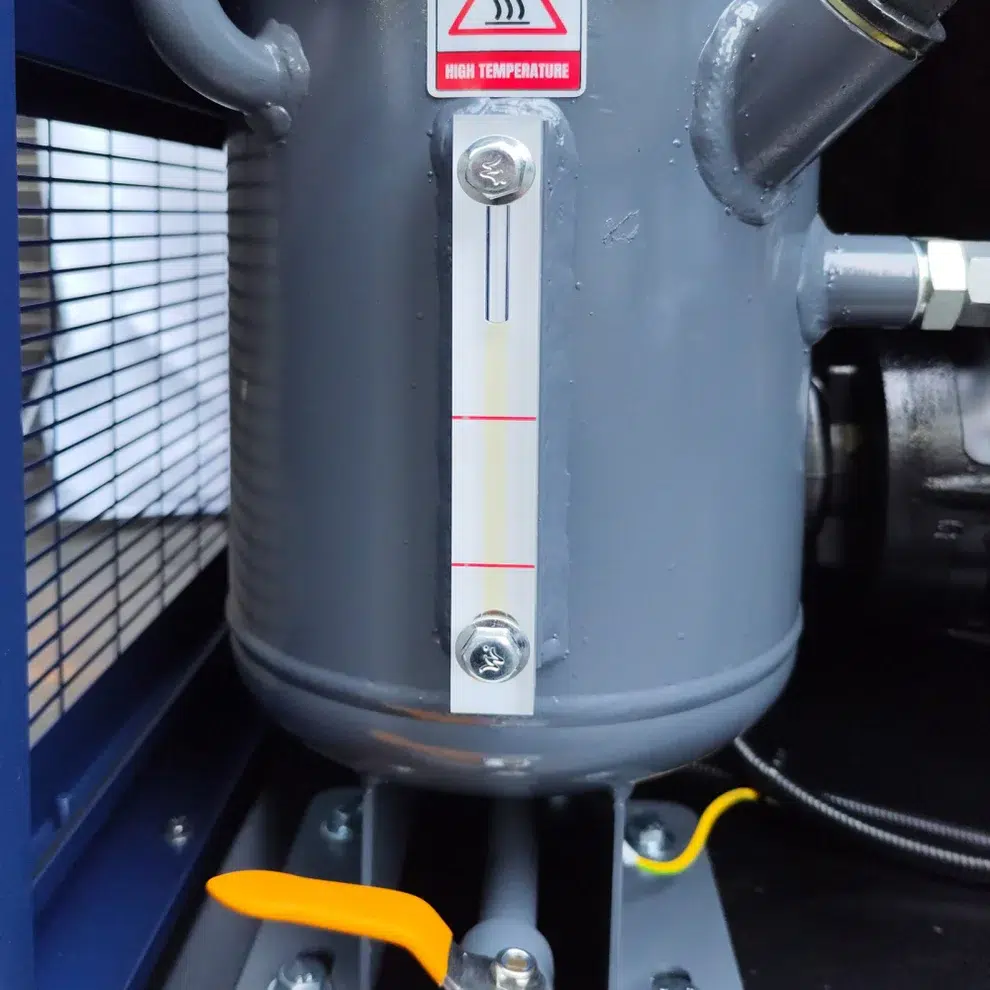

Clear indication of oil level.

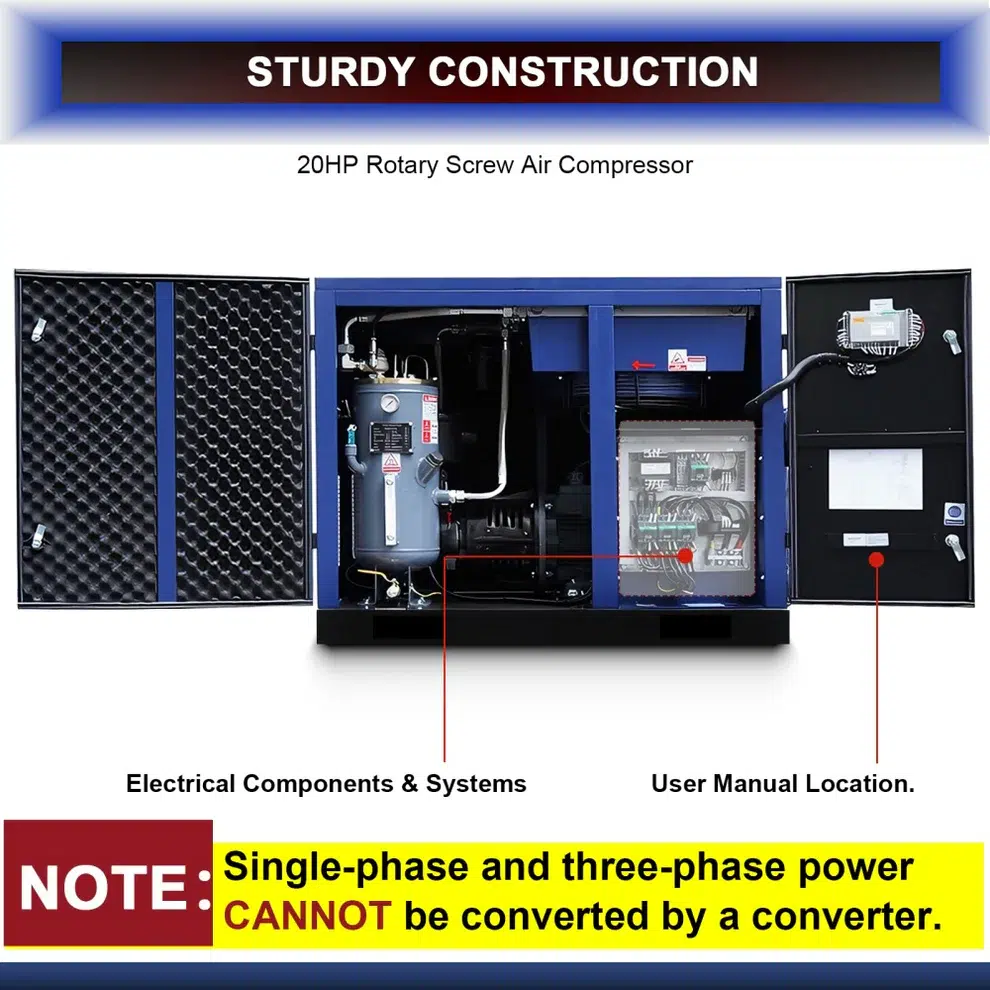

Adoption of Schneider brand electrical components.

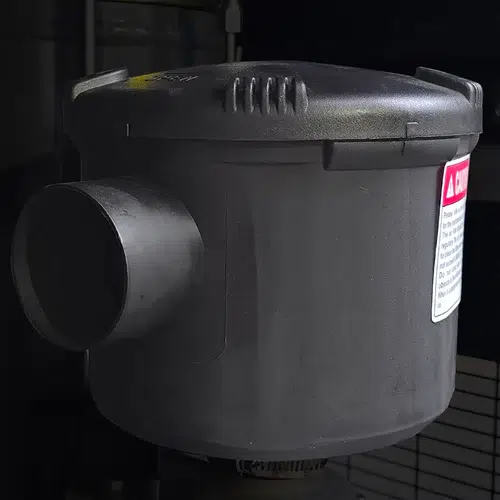

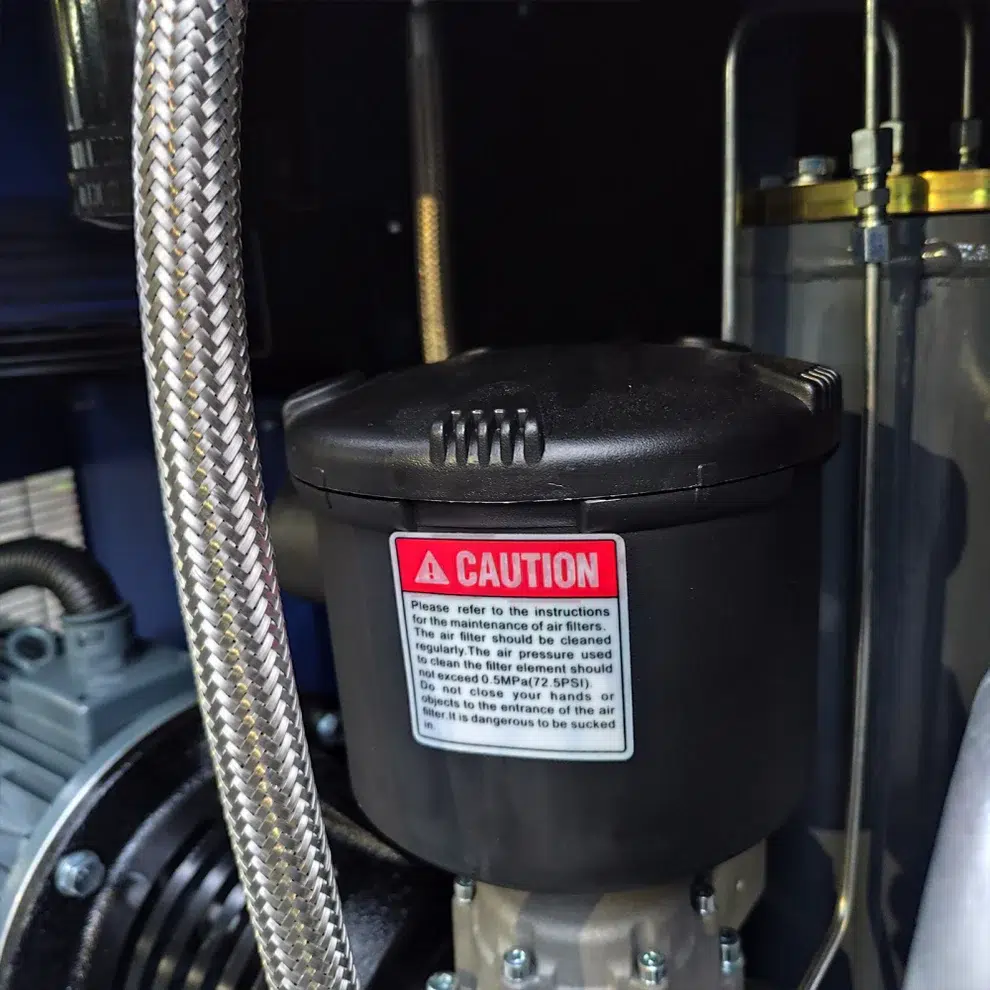

This easy-to-replace air filter features a large dust-holding capacity and low initial pressure drop, enhancing energy efficiency. It effectively removes particles larger than 3 microns and ensures stable performance even in harsh operating conditions.

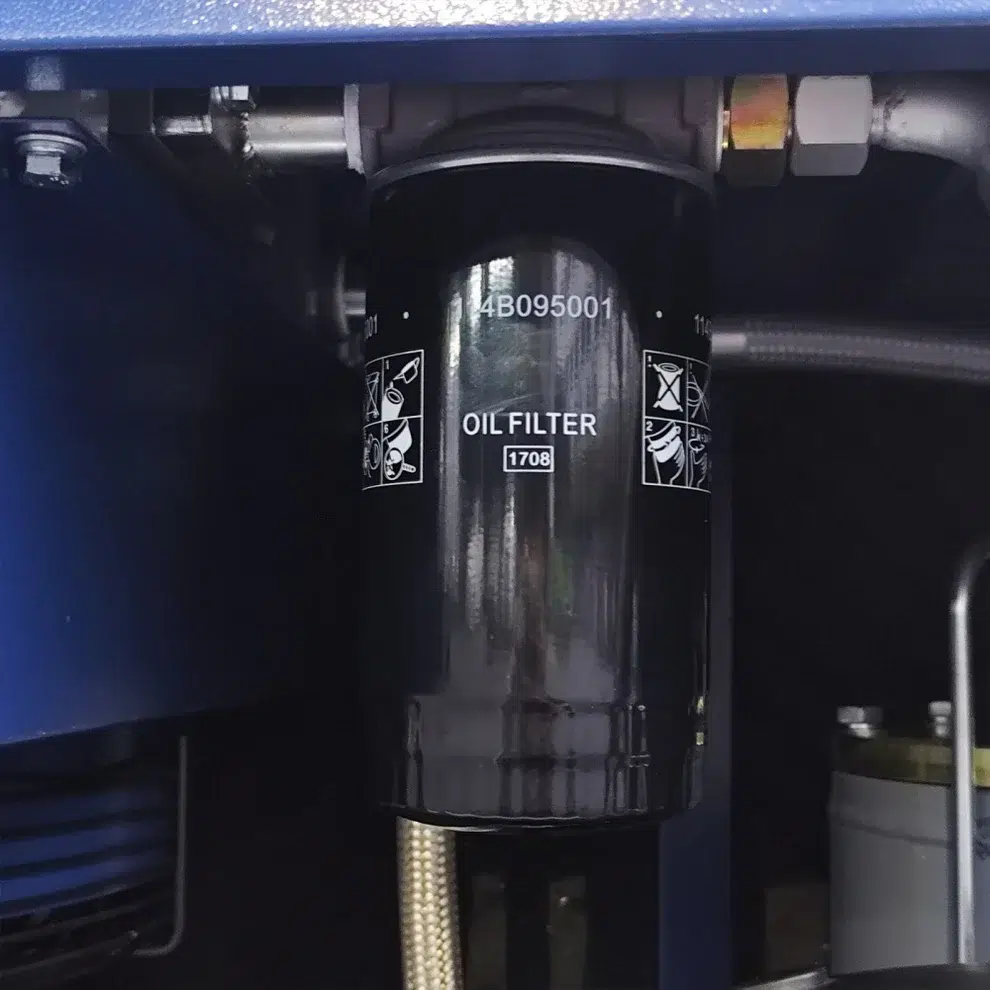

This high-precision oil filter ensures optimal air purity and compressor protection, while the easy-replacement design significantly cuts maintenance time and total cost of ownership.

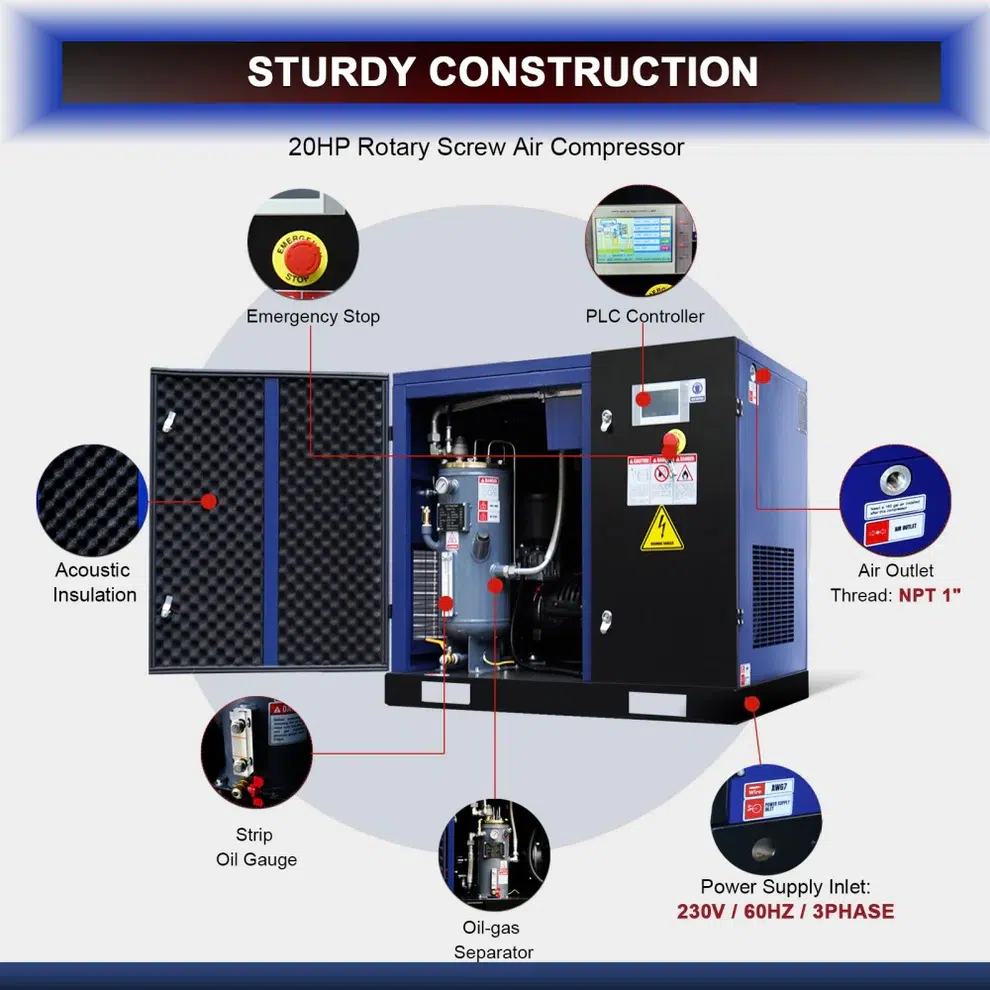

High-performance acoustic insulation significantly reduces compressor noise levels.

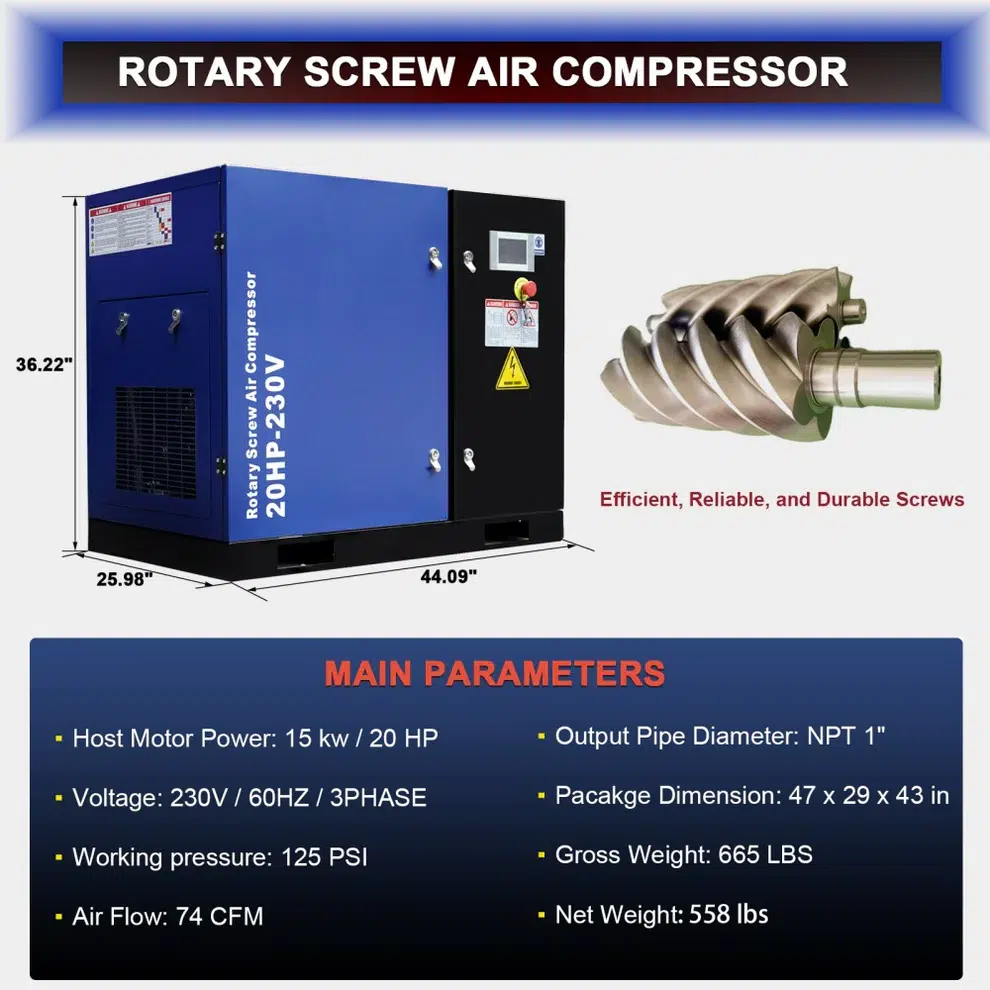

| Dimension | 44.09×25.98×36.22 inch | Voltage | 230V 3Phase 60HZ |
| Air Flow Capacity | 74CFM | Rated Pressure | 125PSI |
| Maximum Pressure | 130.5PSI | Air Outlet Thread | 1″ NPT |
| Maximum Current | 55.8A | Rated Power | 20HP |
| Motor Speed | 3500RPM | Noise Level | 62±2dB(A) |
US warehouse dispatch, Fulfillment time: 6-10 business days
• LxWxH (inch): 48x30x44
• Weight (lb): 665
• A forklift or equivalent is required for unloading.
For additional shipping information, please visit our Shipping Policy.
