Max Flow Rated Pressure
134CFM 101.5PSI
Original price was: $2,199.00.$1,899.00Current price is: $1,899.00.
Customer Service Contact Email
Mon - Fri 8AM - 5PM EST

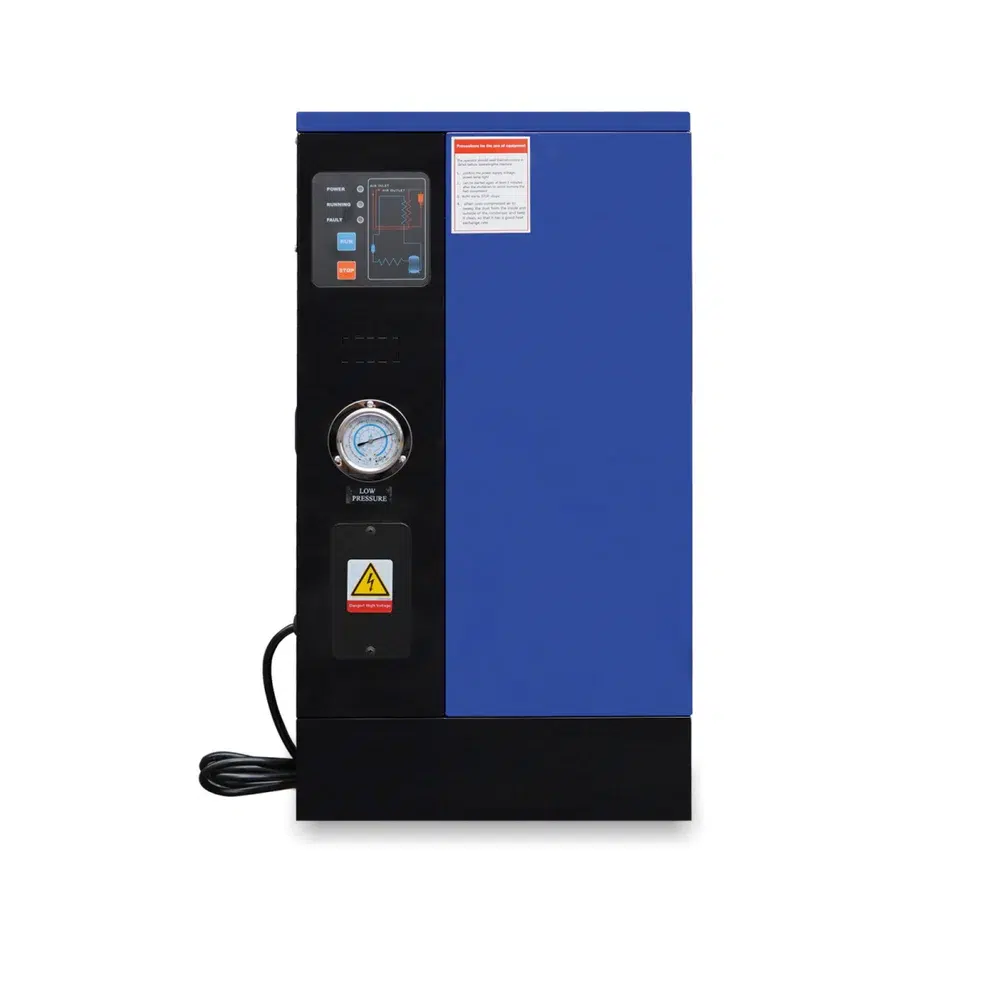

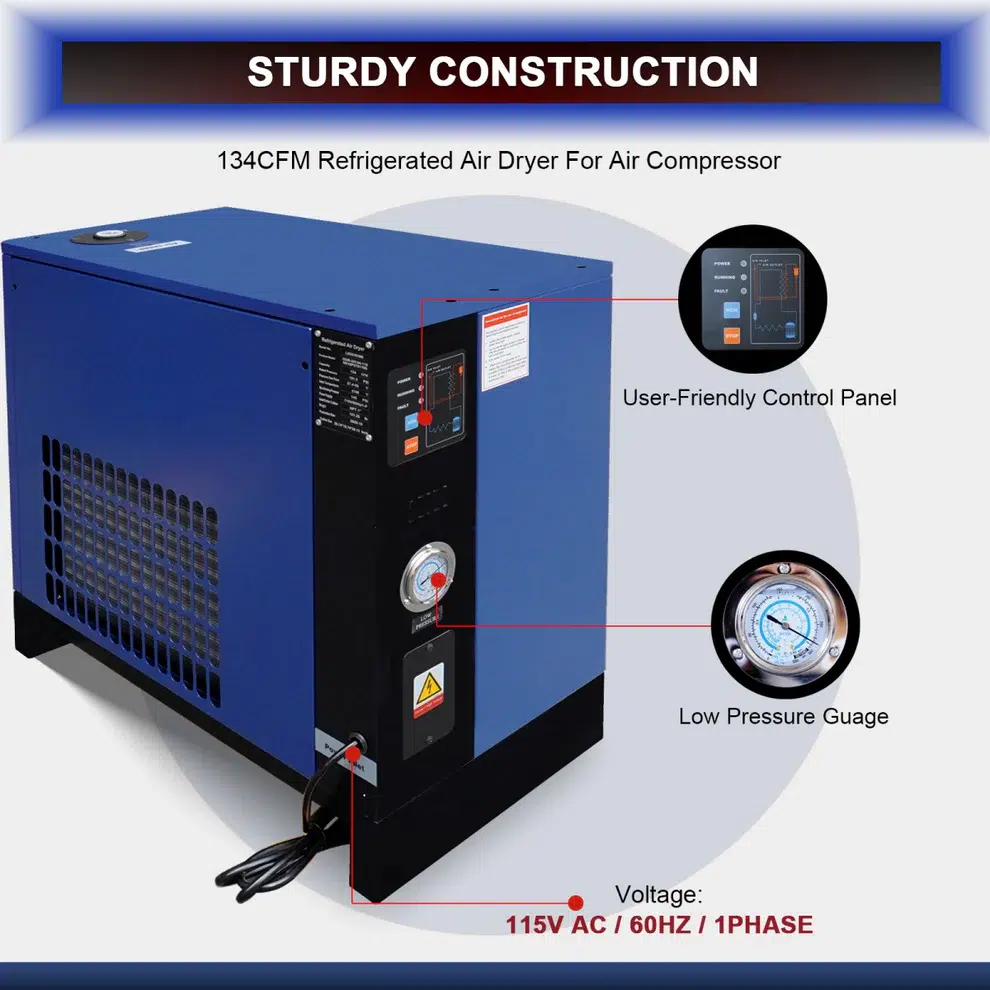

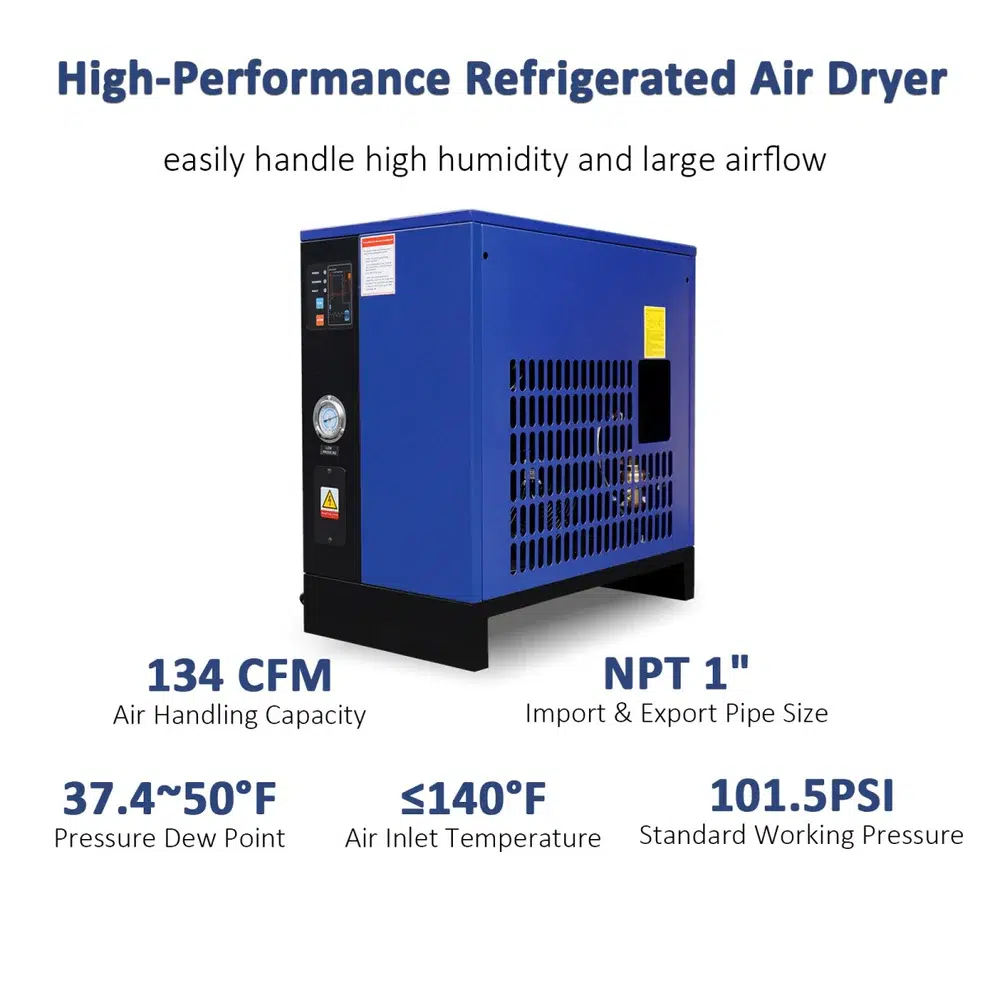

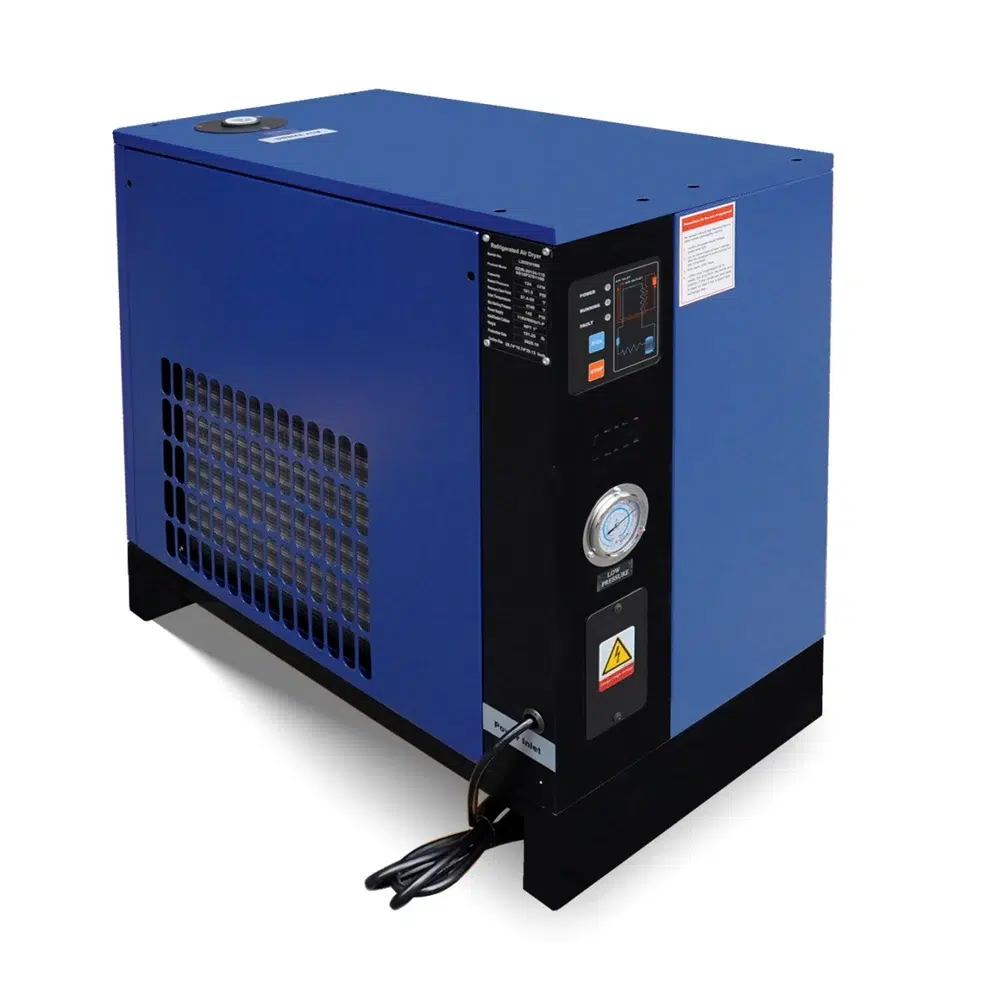

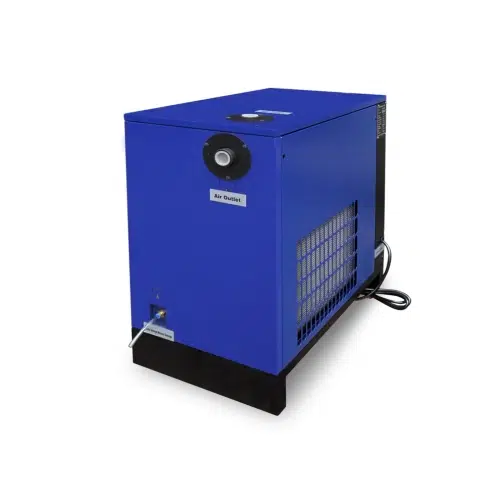

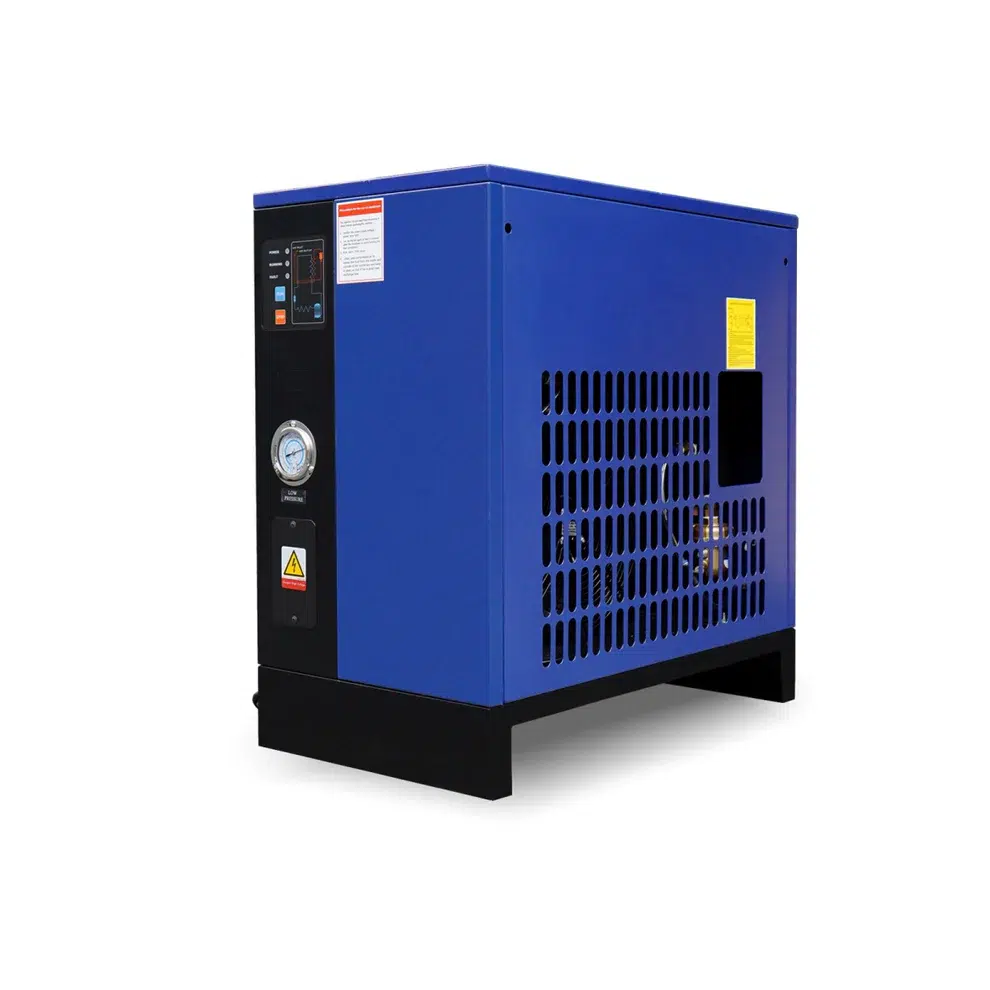

Safeguard your high-output systems with our 134 CFM refrigerated air dryer, designed for 20HP & 30HP compressors. Operating on 1-phase 115V power, it efficiently removes moisture to prevent corrosion and ensure clean, dry air. This industrial-grade unit is essential for protecting pneumatic tools and maximizing productivity.

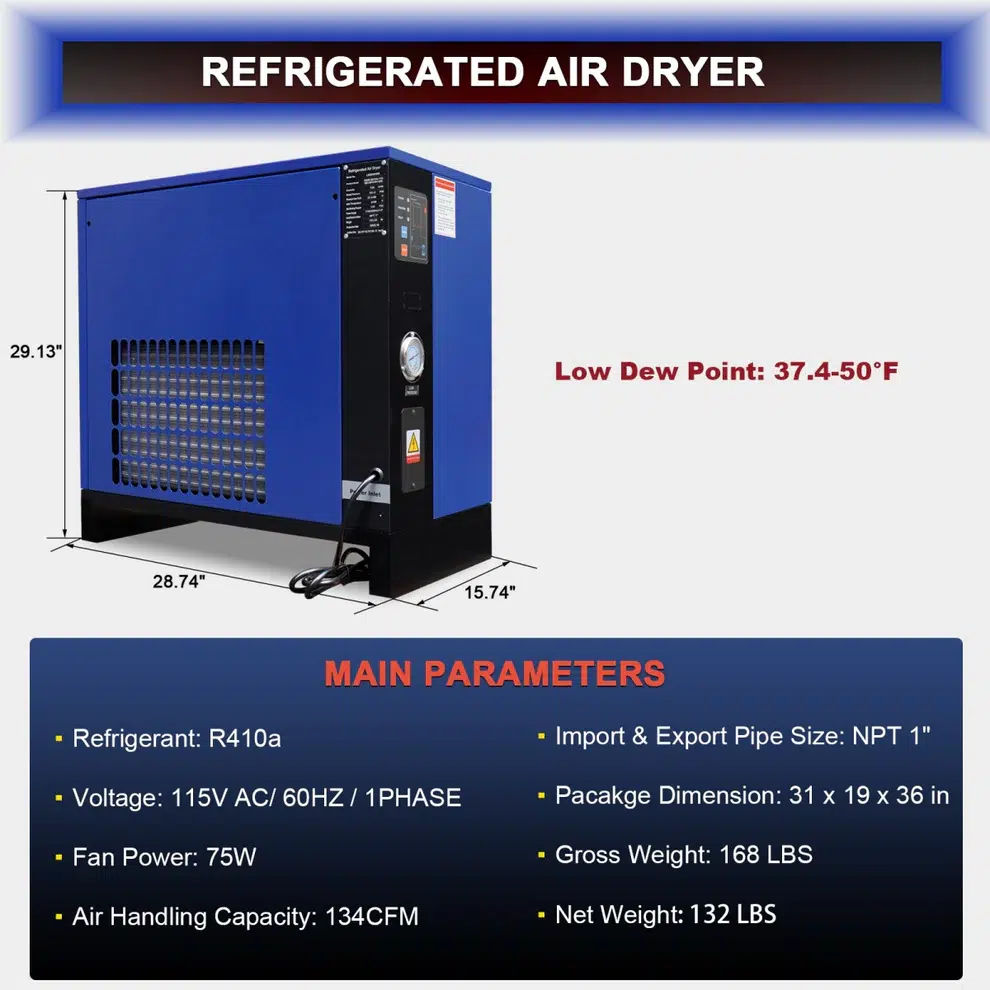

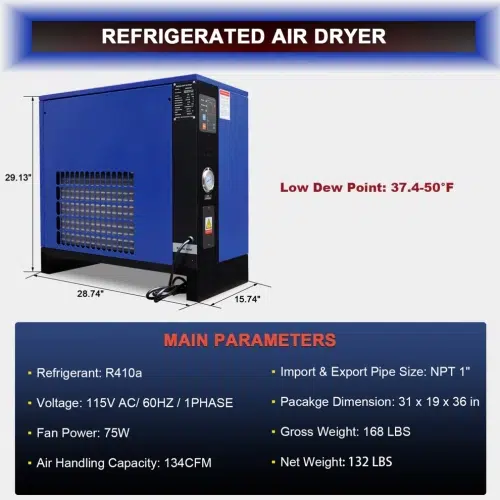

| Dimension | 28.74X15.74X29.13 inch | Voltage | 115V 1Phase 60HZ |
| Max Flow | 134CFM | Rated Pressure | 101.5PSI |

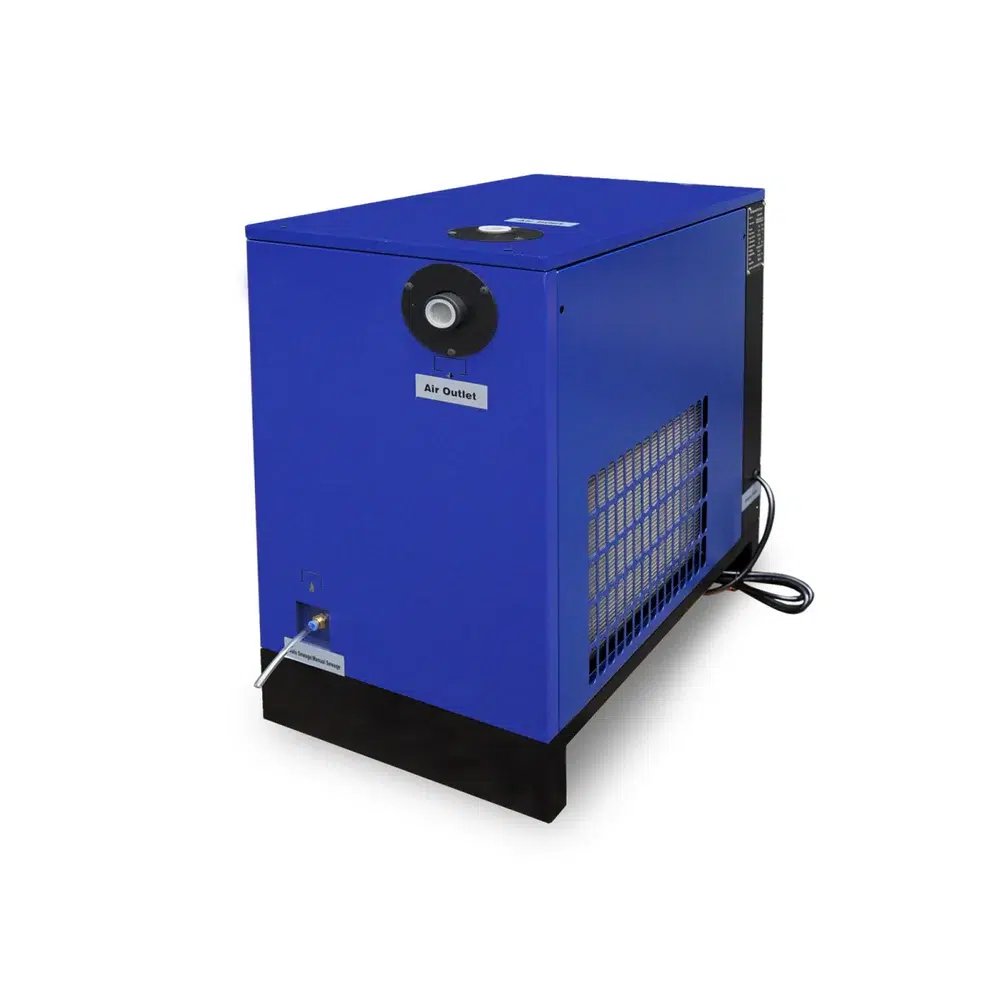

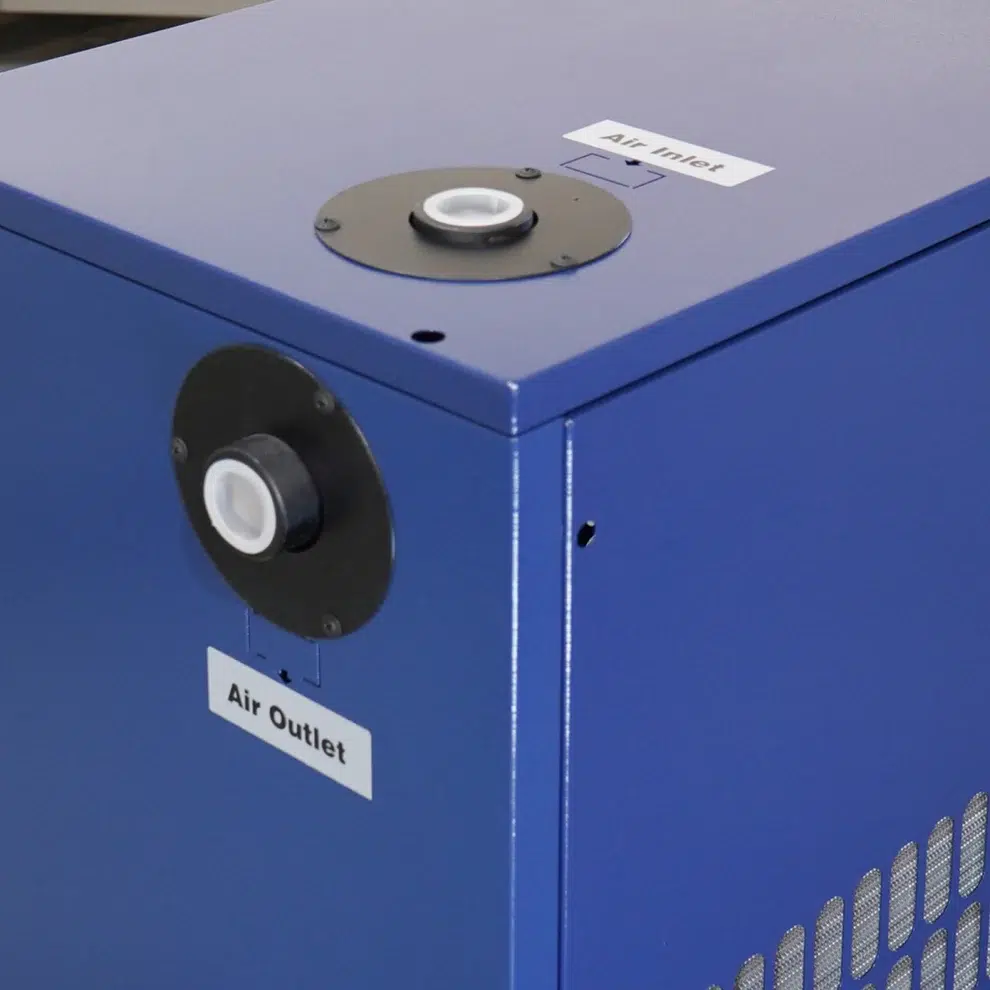

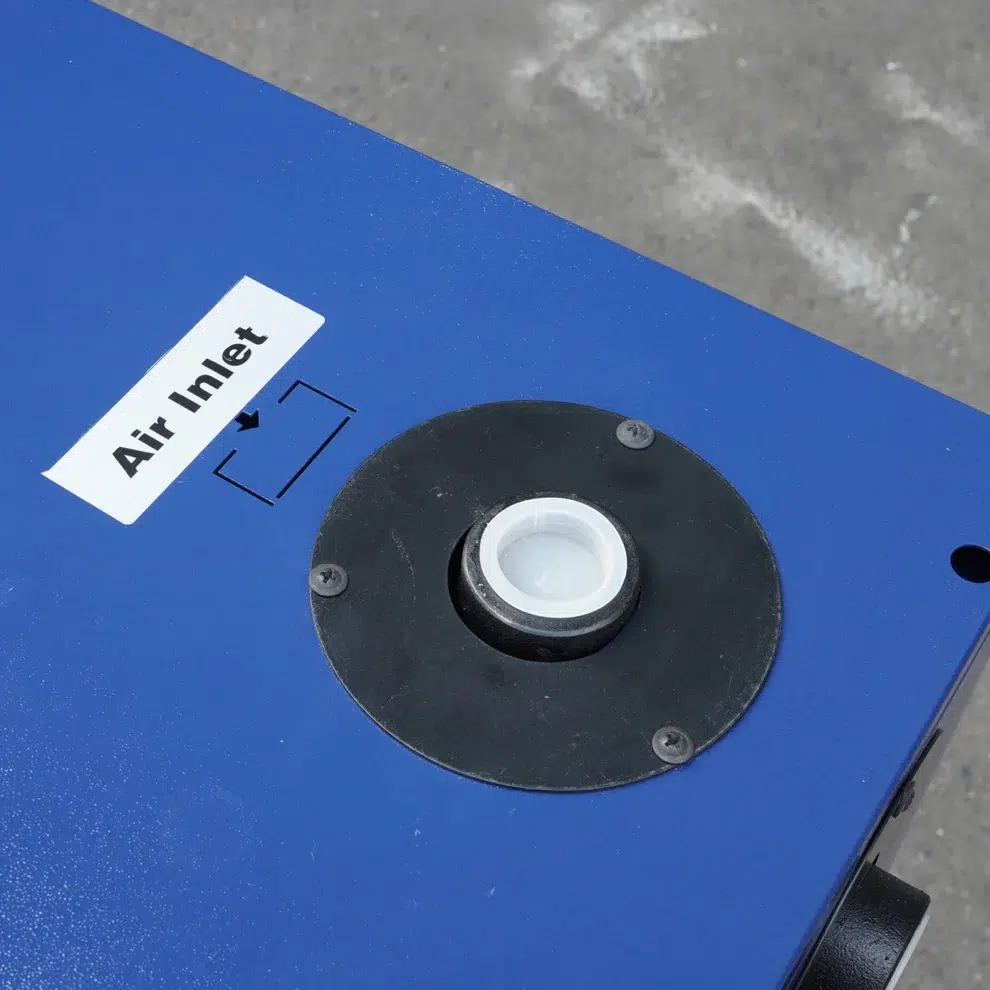

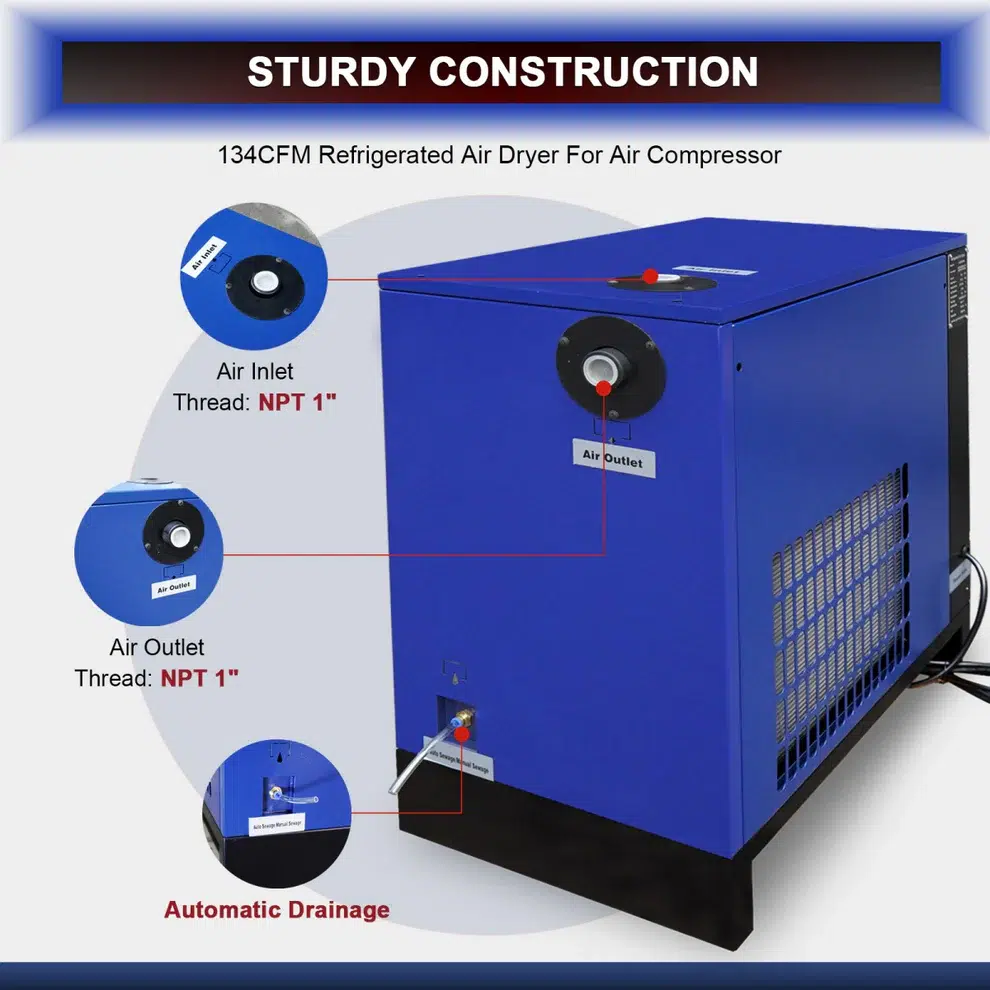

| Maximum Pressure | 145PSI | Air Inlet Thread | 1″ NPT |

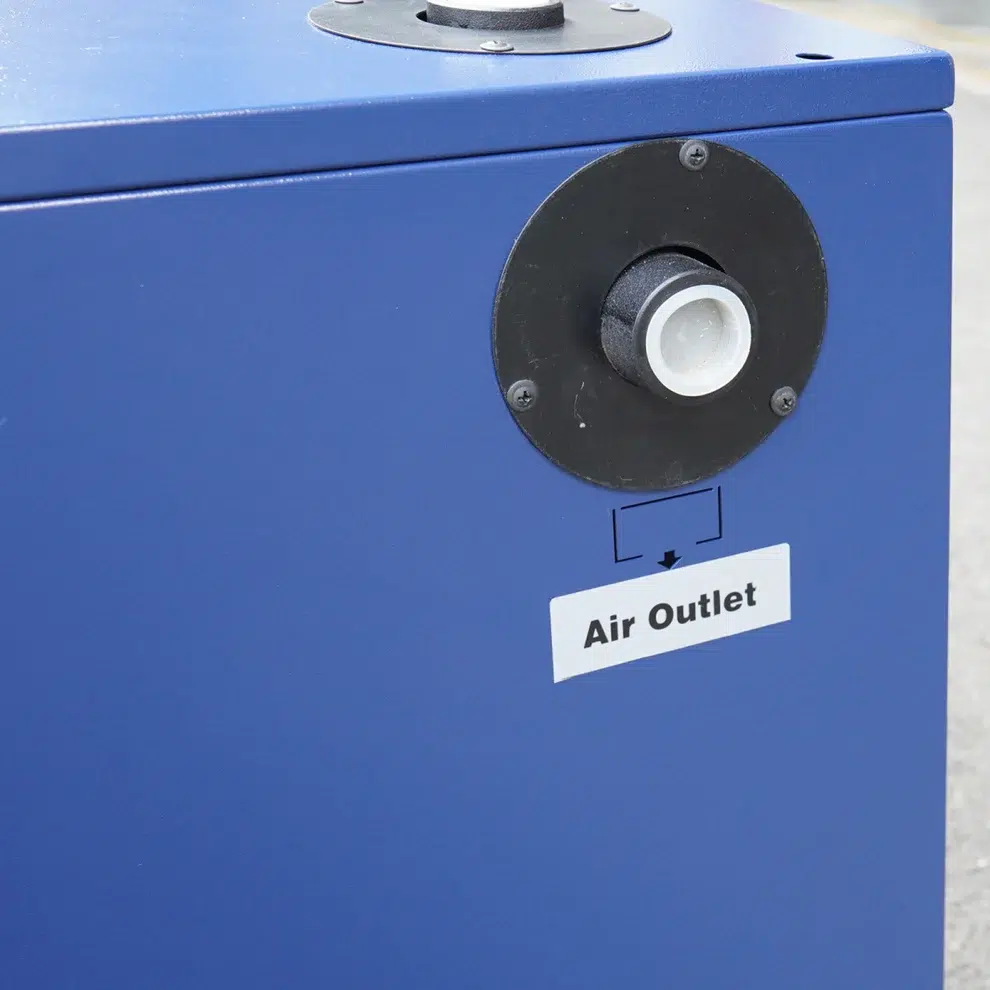

| Air Outlet Thread | 1″ NPT | Pressure Dew Point | 37.4-50°F |
| Air Inlet Temperature | ≤140°F | Ambient Temperature | ≤100.4°F |
| Refrigerant | R410a | Fan Power | 75W |

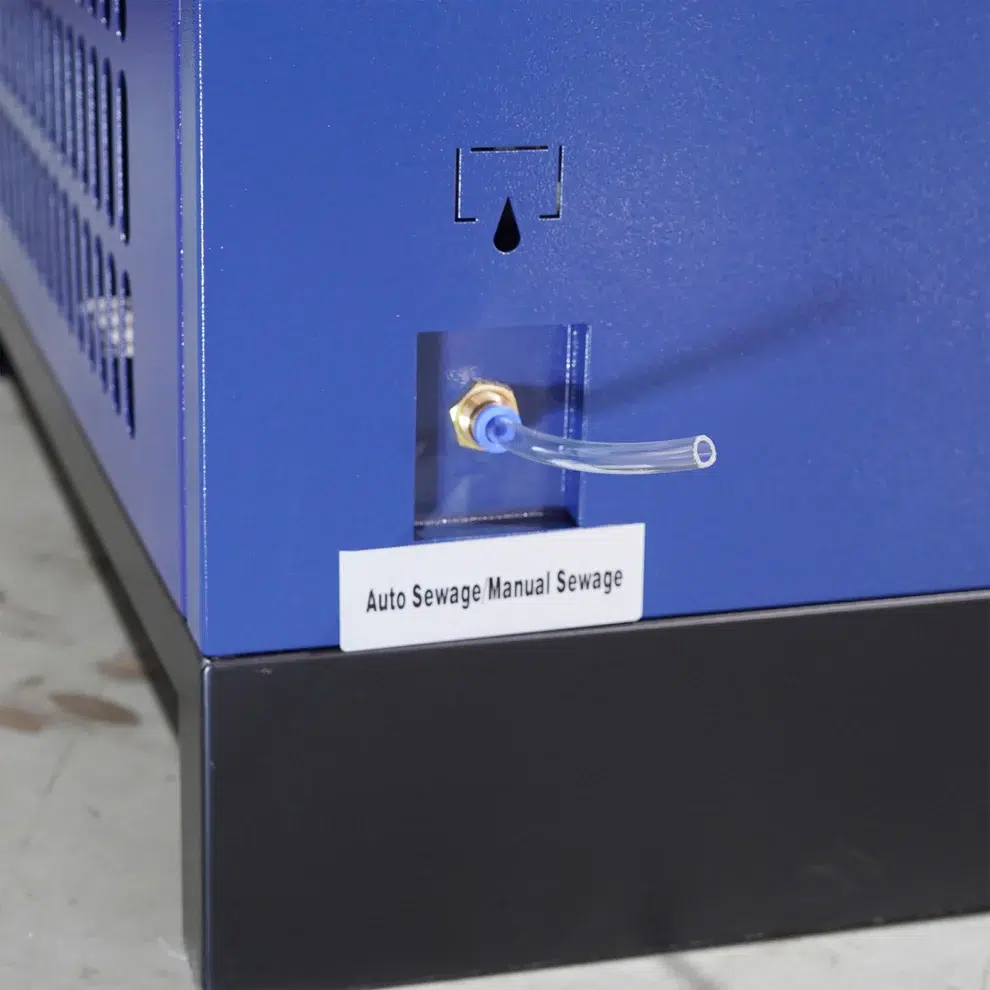

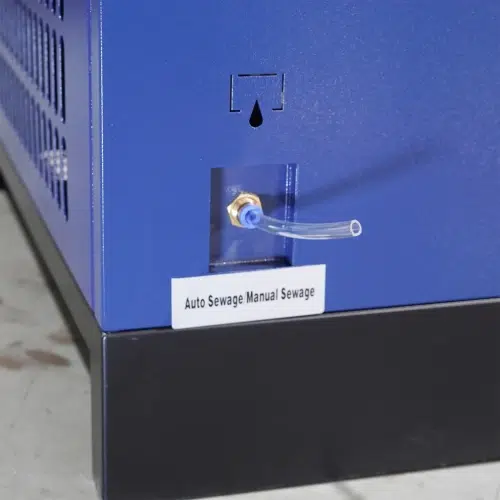

| Cooling Power | 0.5HP | Blowdown Valve | Electronic blowdown valve |
US warehouse dispatch, Fulfillment time: 6-10 business days
• LxWxH (inch): 26x16x32
• Weight (lb): 121
• A forklift or equivalent is required for unloading.
For additional shipping information, please visit our Shipping Policy.
