Max Flow Rated Pressure
63CFM 101.5PSI
$1,049.00
Customer Service Contact Email
Mon - Fri 8AM - 5PM EST

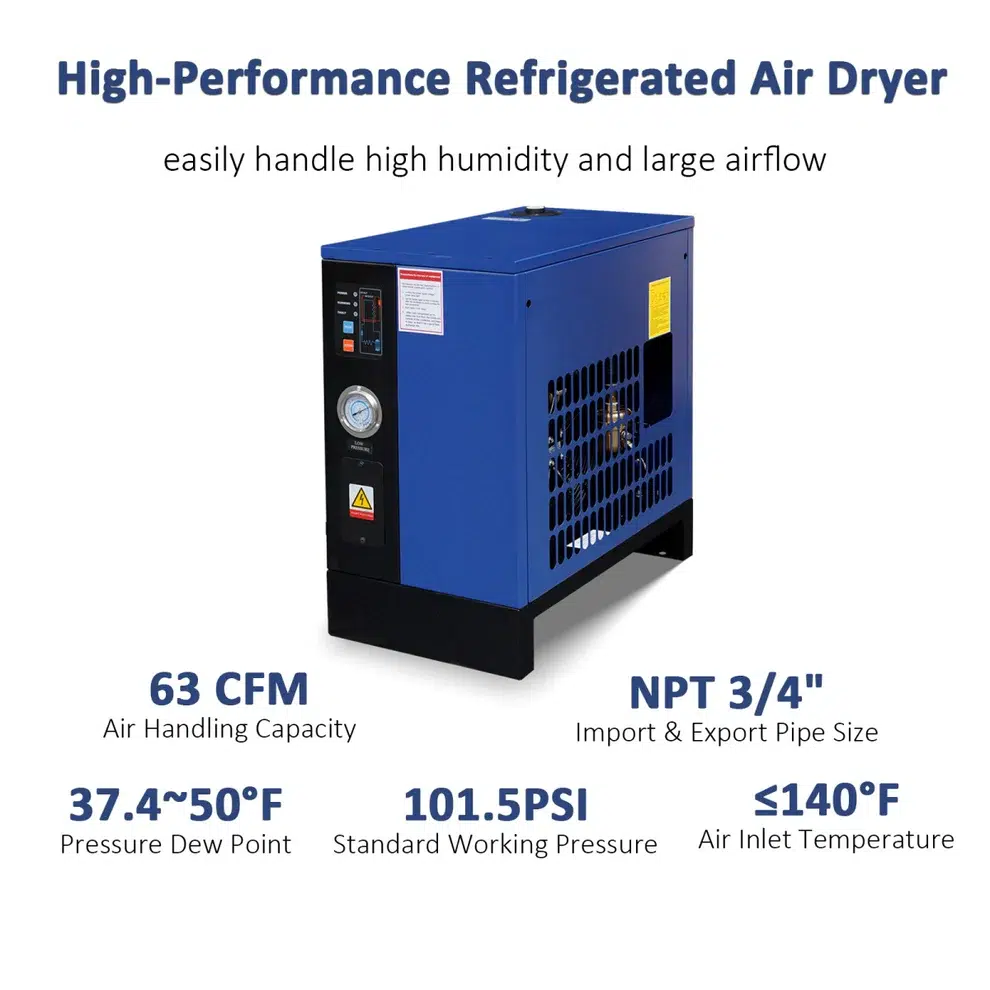

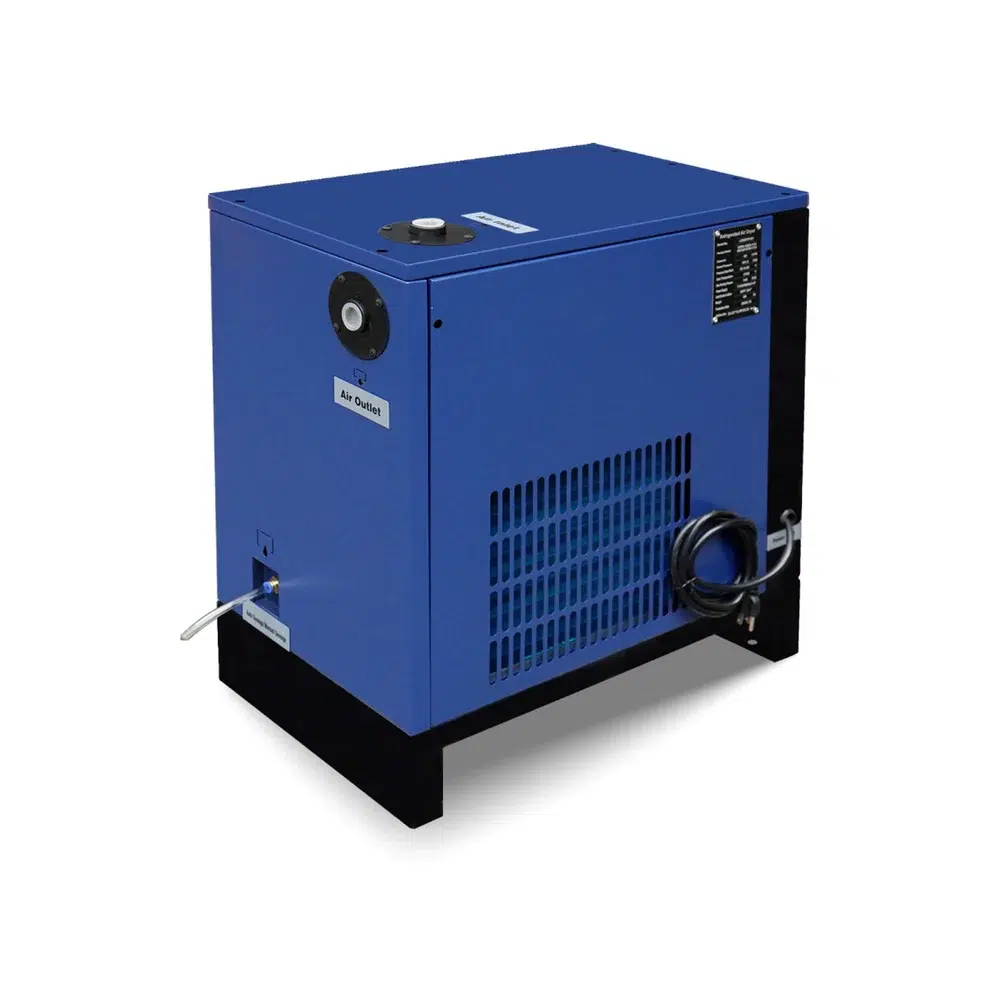

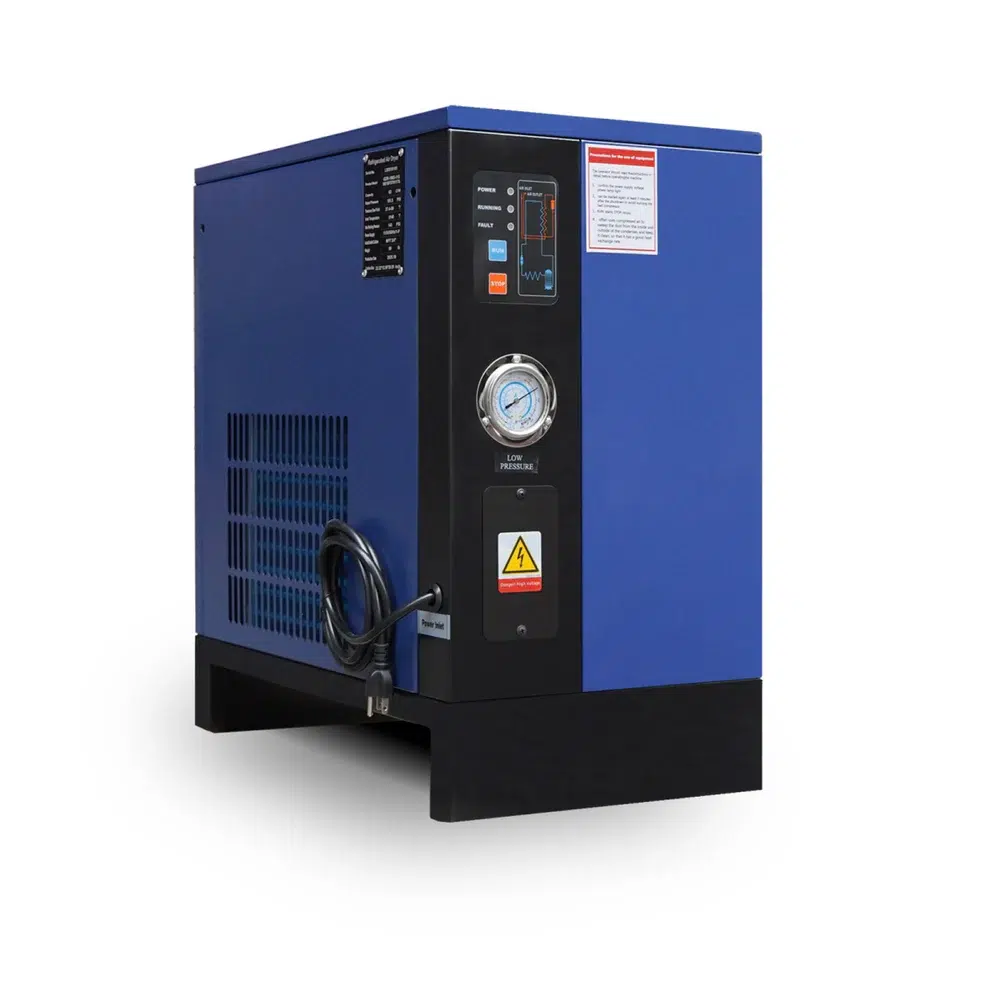

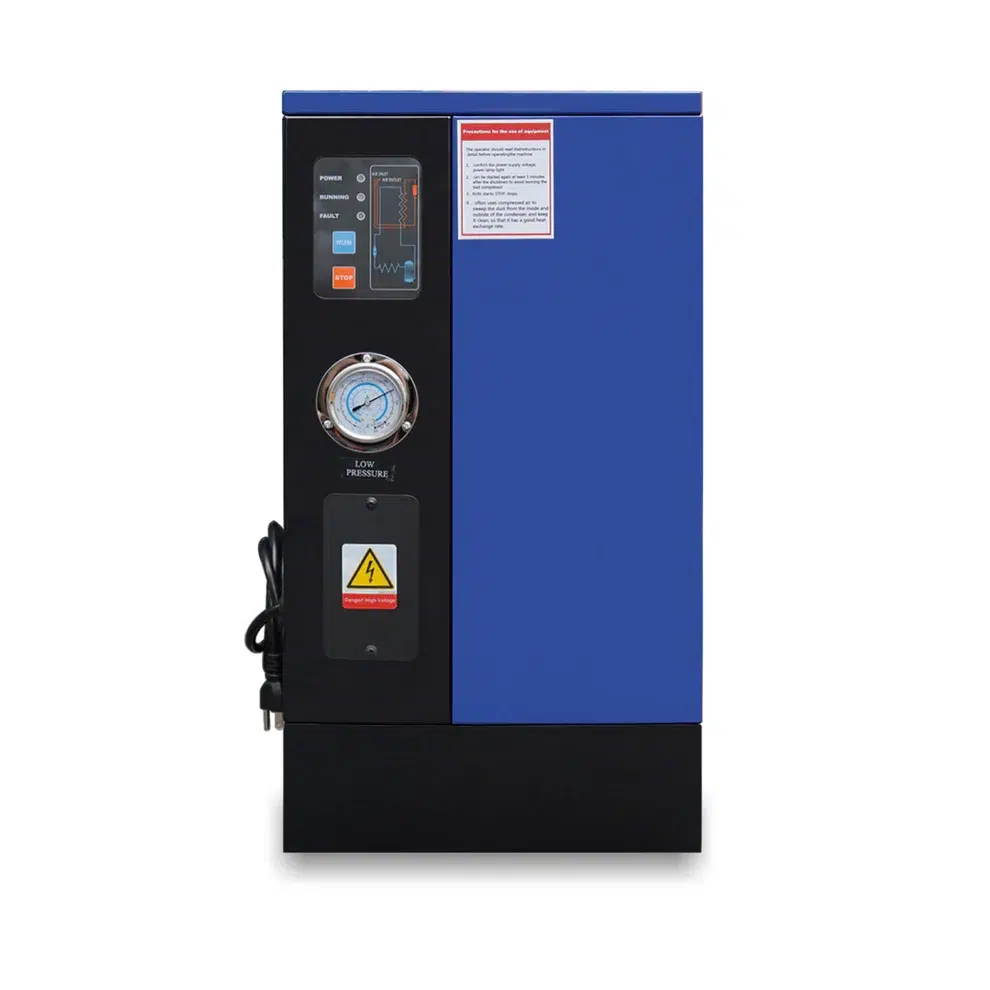

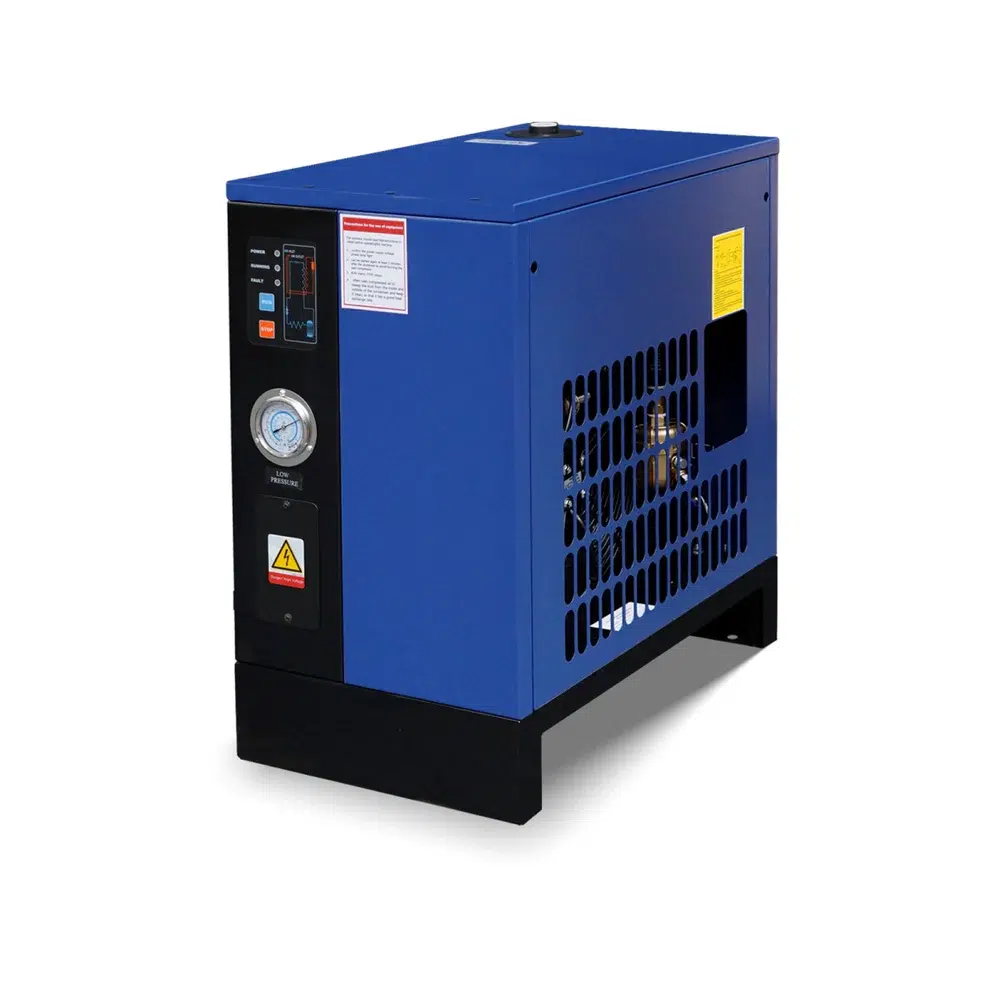

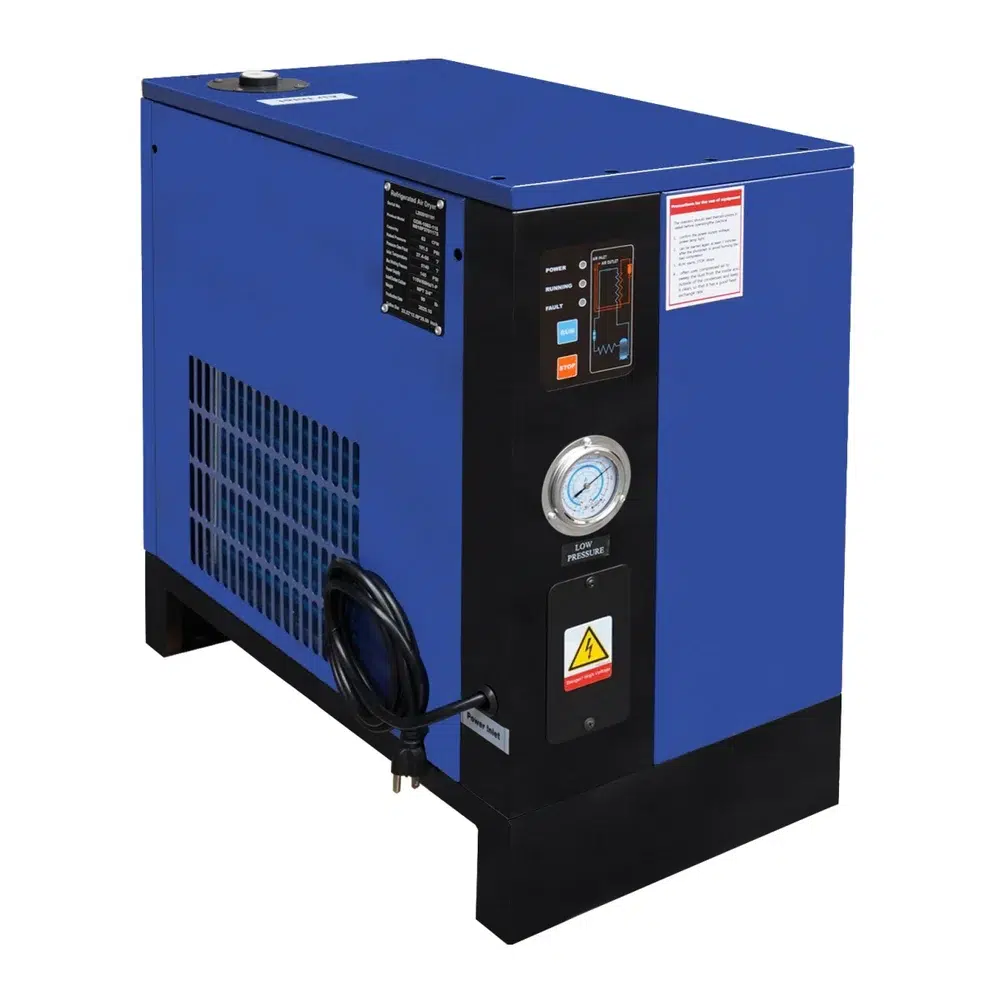

Protect your equipment with our 63 CFM refrigerated air dryer, perfectly matched for 10HP & 15HP compressors. This 1-phase 115V unit efficiently removes moisture to prevent corrosion and ensure optimal air quality. A reliable, industrial-grade solution for protecting your compressed air systems and pneumatic tools.

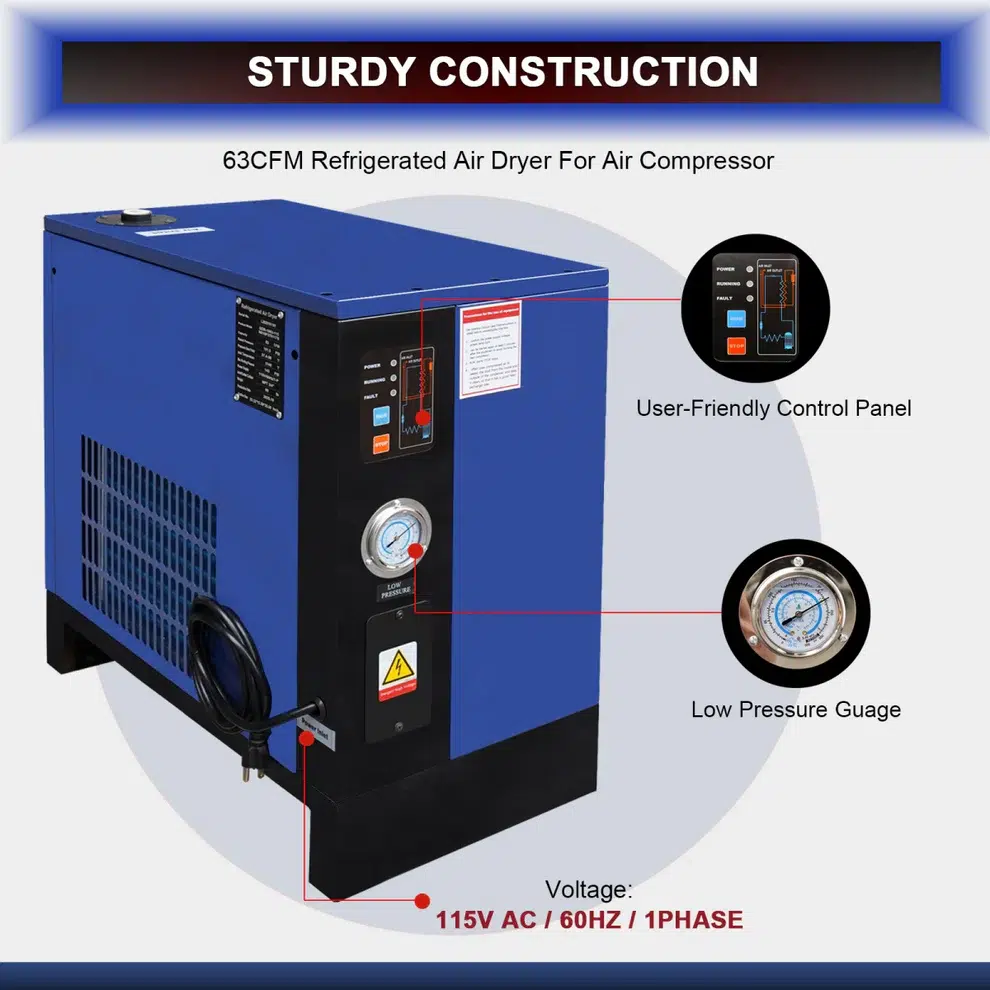

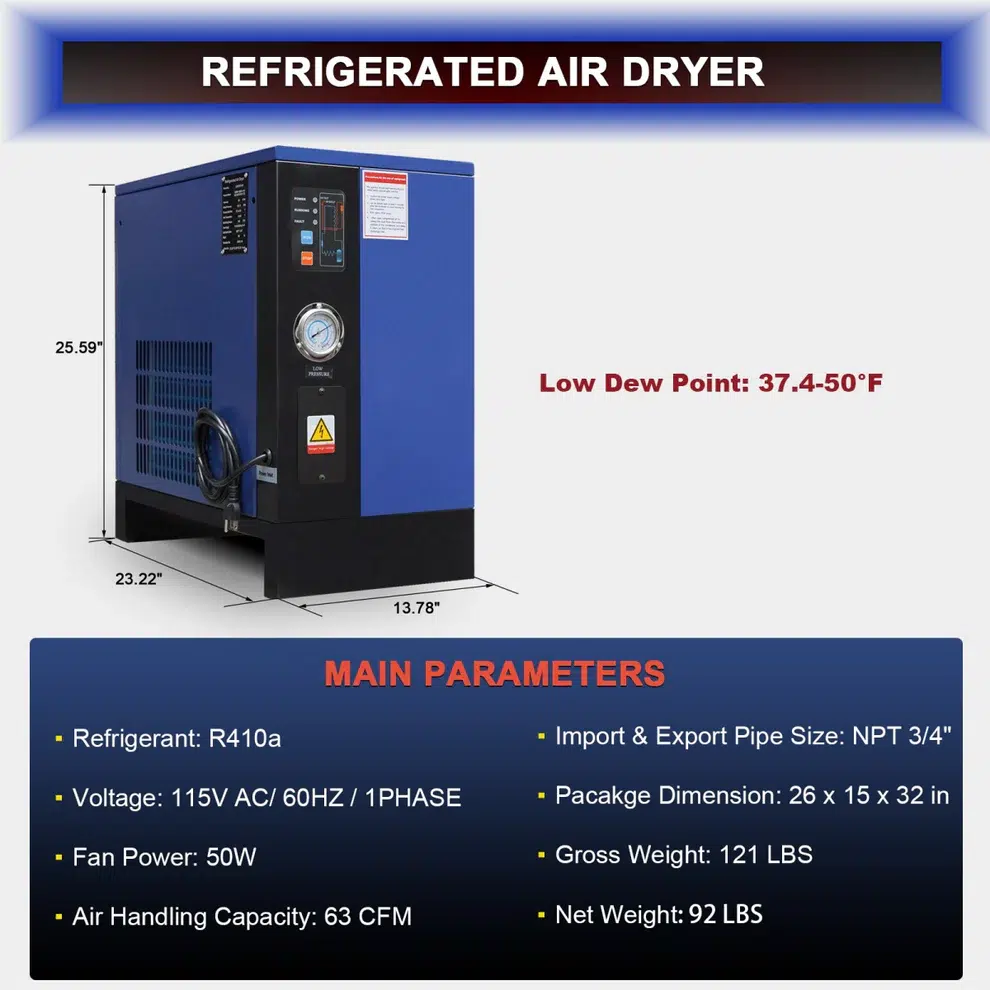

| Dimension | 23.22×13.78×25.59 inch | Voltage | 115V 1Phase 60HZ |
| Max Flow | 63CFM | Rated Pressure | 101.5PSI |

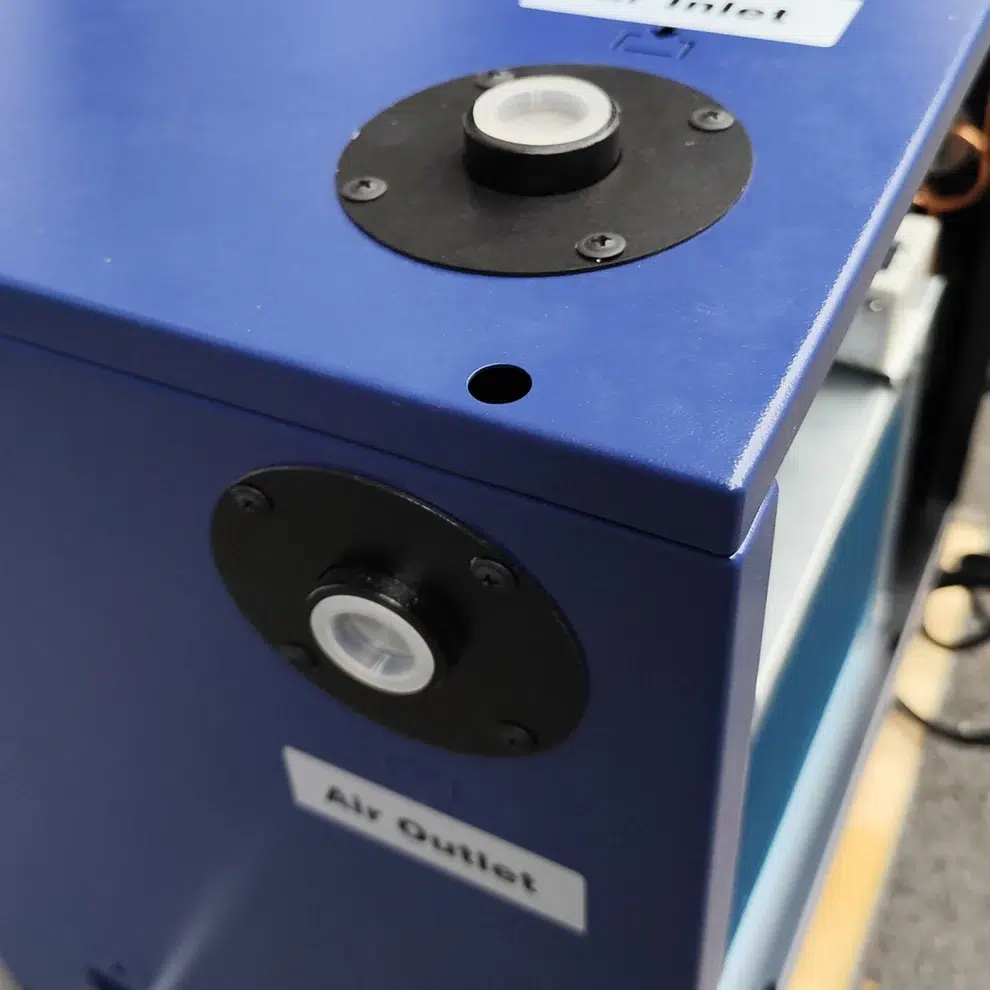

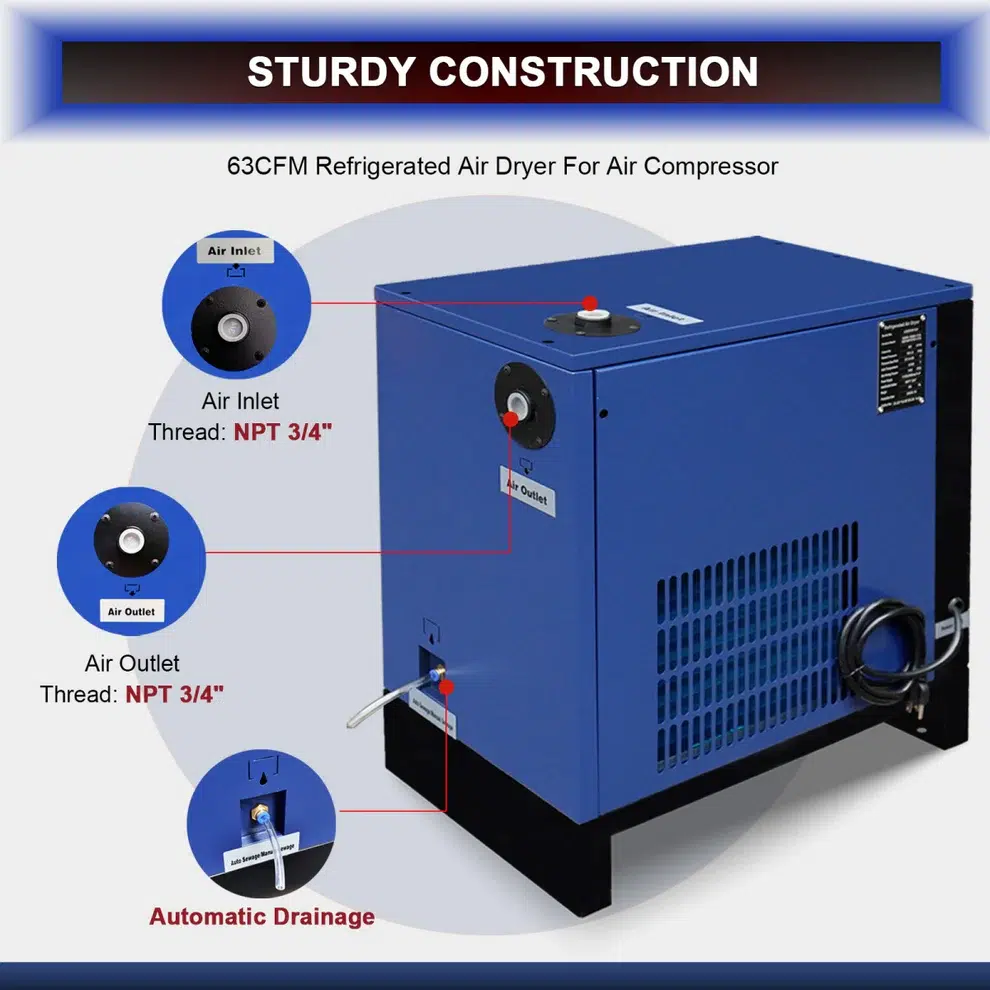

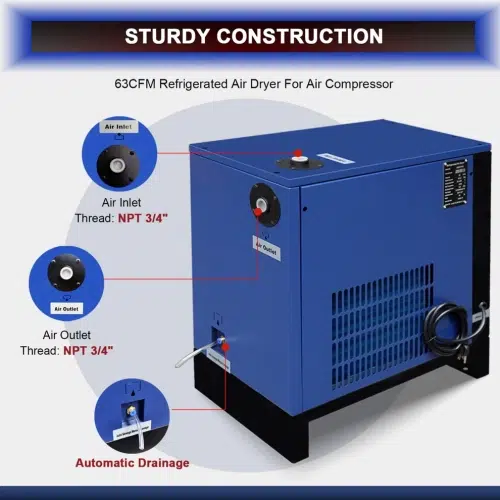

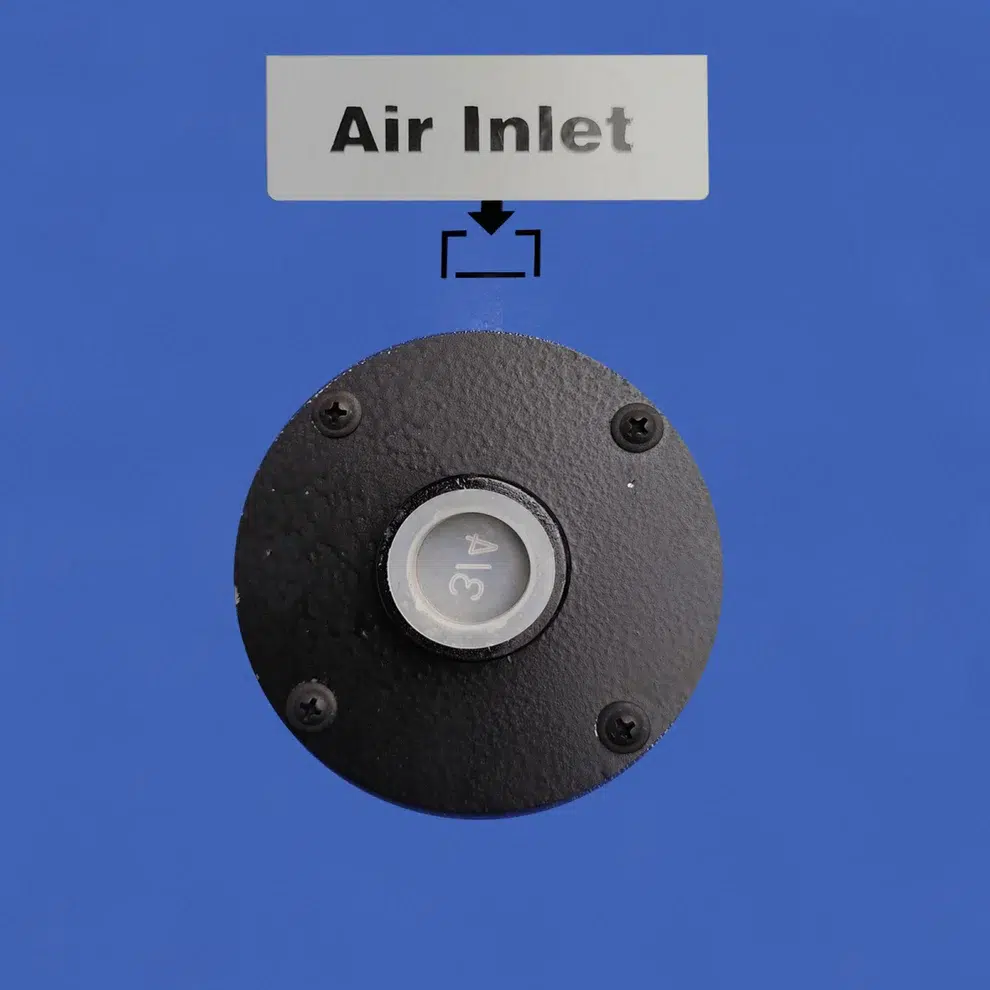

| Maximum Pressure | 145PSI | Air Inlet Thread | 3/4″ NPT |

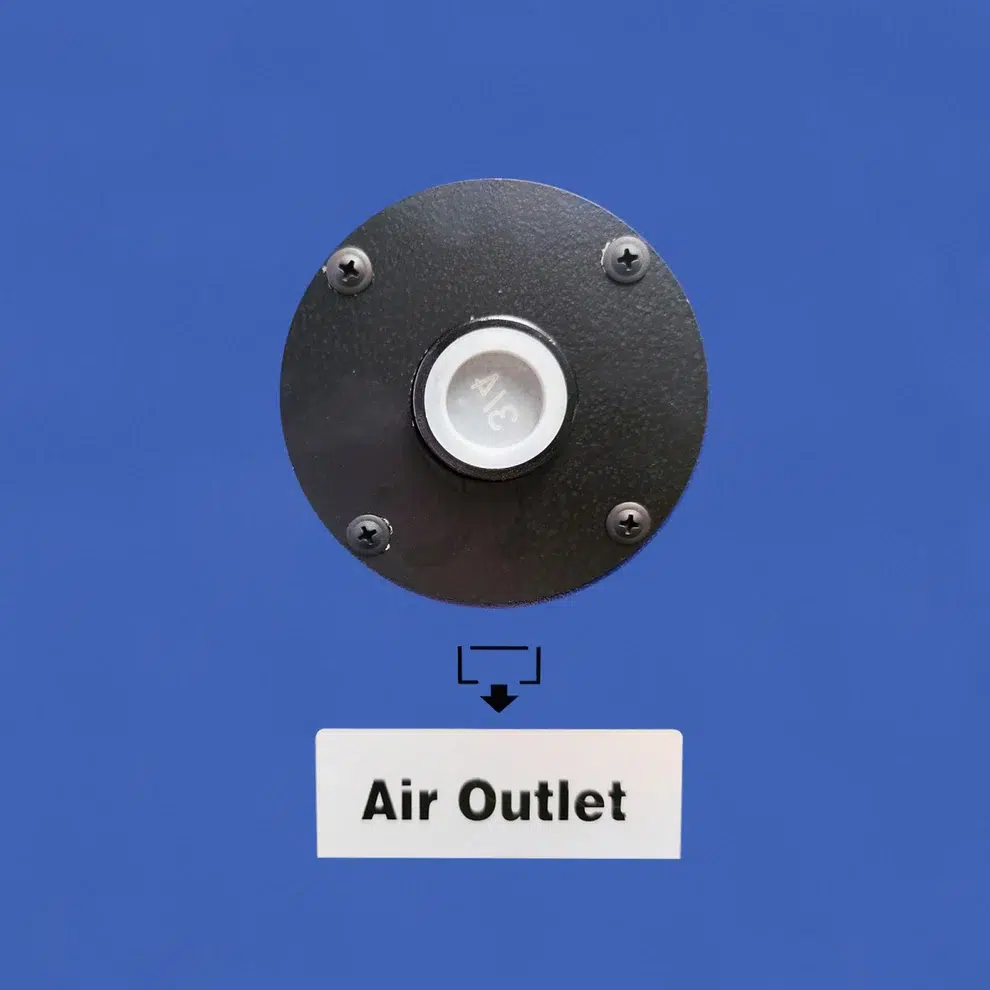

| Air Outlet Thread | 3/4″ NPT | Pressure Dew Point | 37.4-50°F |
| Air Inlet Temperature | ≤140°F | Ambient Temperature | ≤100.4°F |

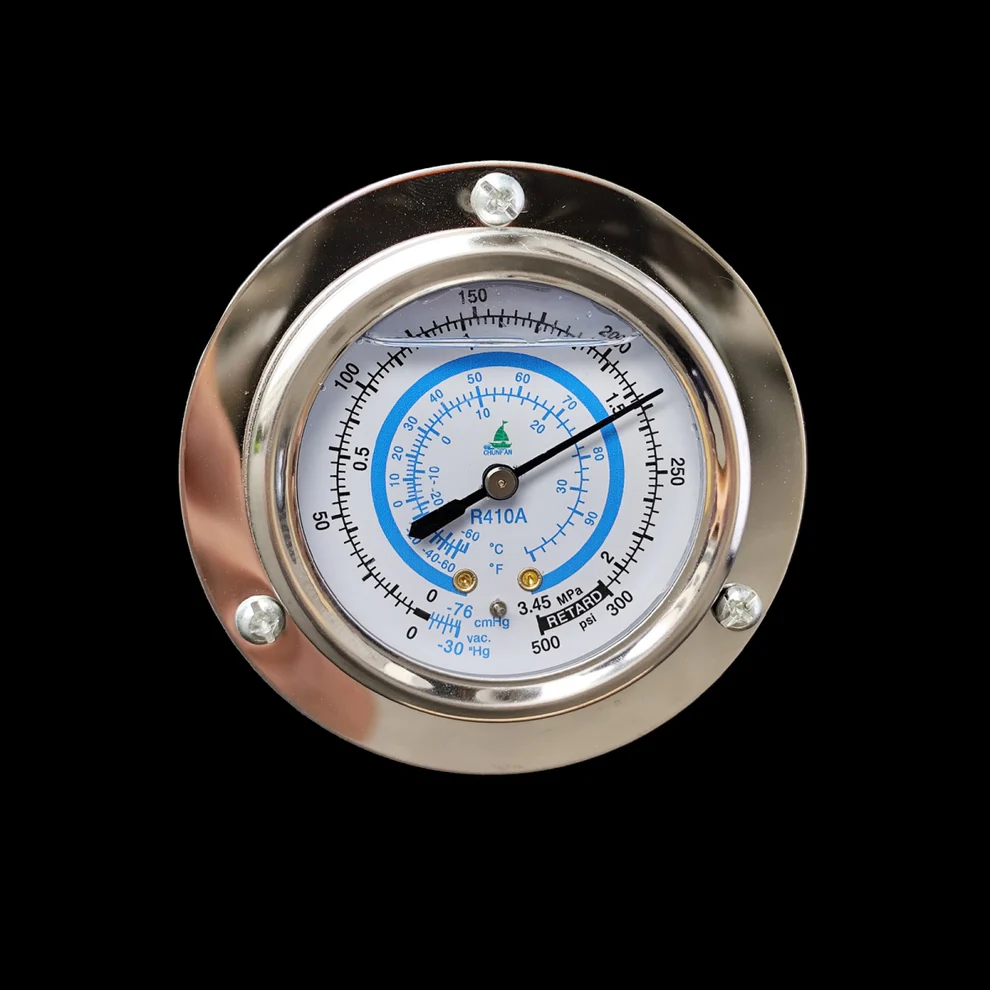

| Refrigerant | R410a | Fan Power | 50W |

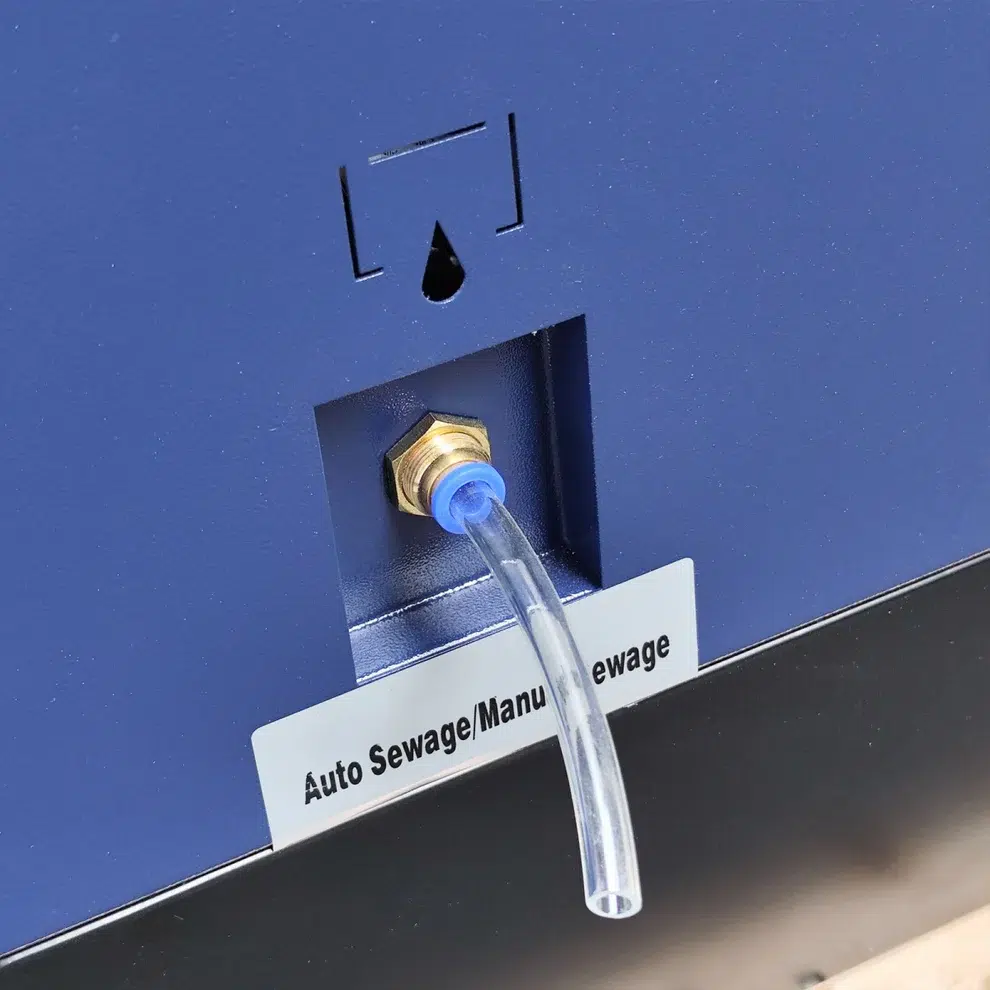

| Cooling Power | 0.5HP | Blowdown Valve | Electronic blowdown valve |
US warehouse dispatch, Fulfillment time: 6-10 business days
• LxWxH (inch): 26x16x32
• Weight (lb): 121
• A forklift or equivalent is required for unloading.
For additional shipping information, please visit our Shipping Policy.
