Air Flow Capacity Rated Pressure
74CFM 125PSI
Original price was: $15,999.00.$14,599.00Current price is: $14,599.00.
5 in stock
5 in stock

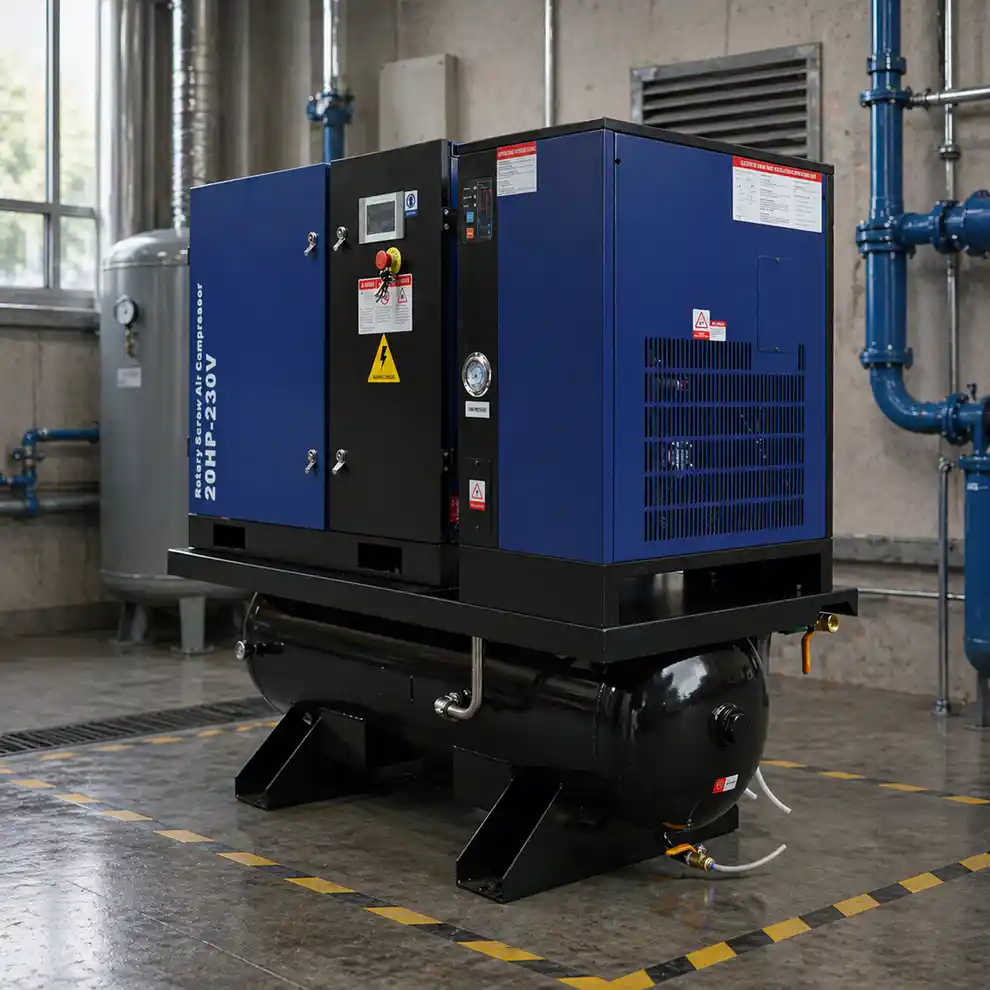

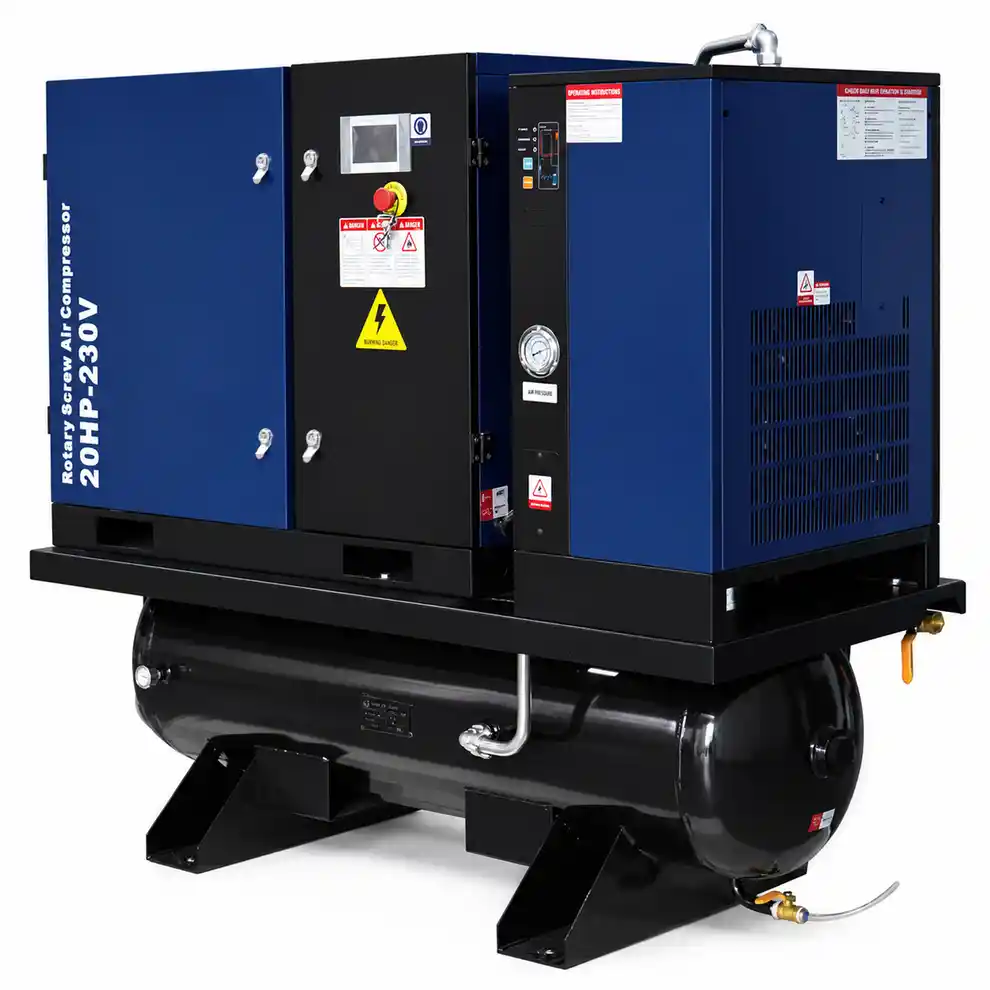

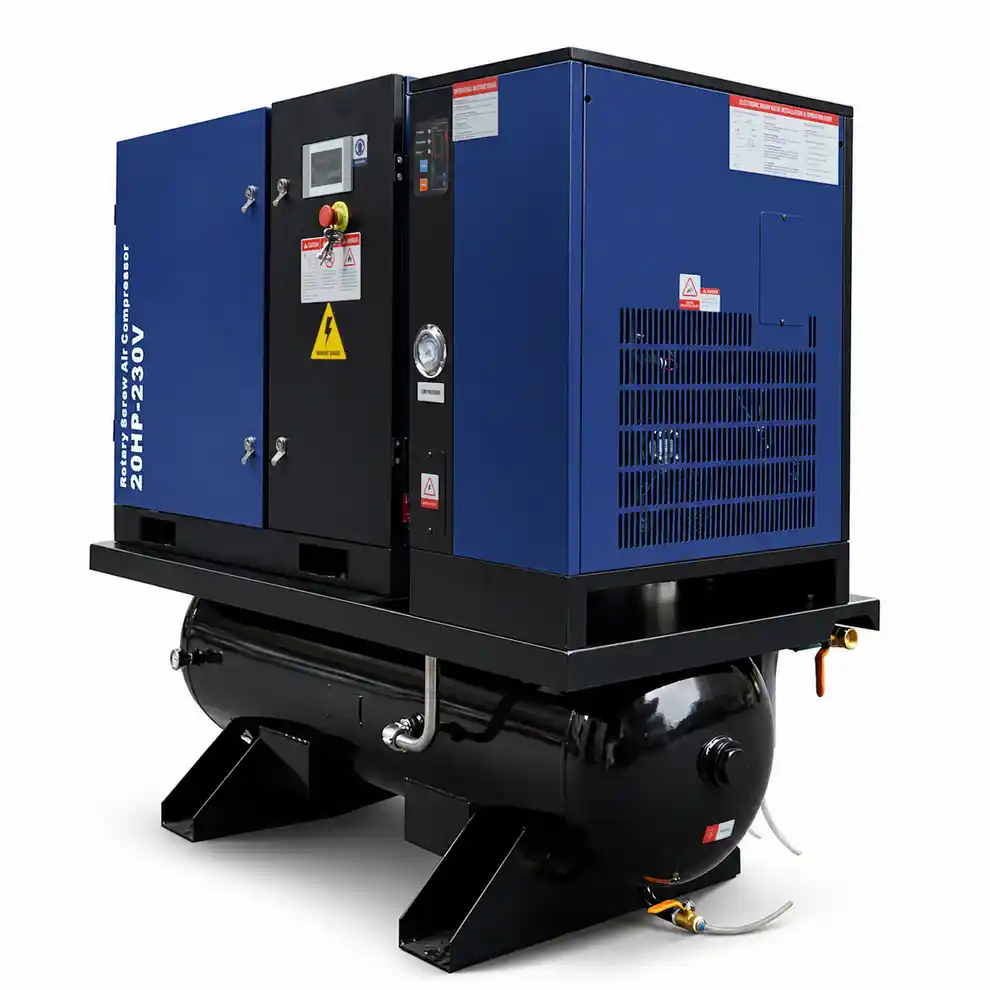

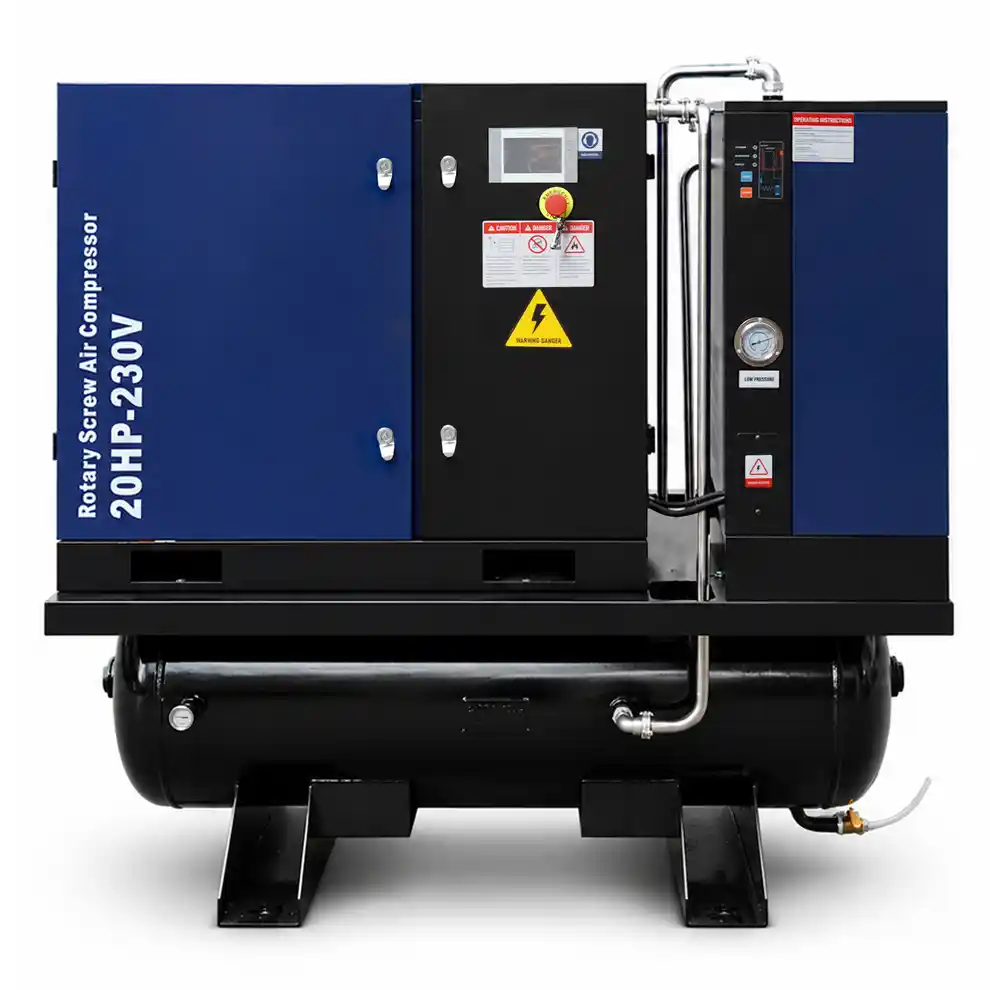

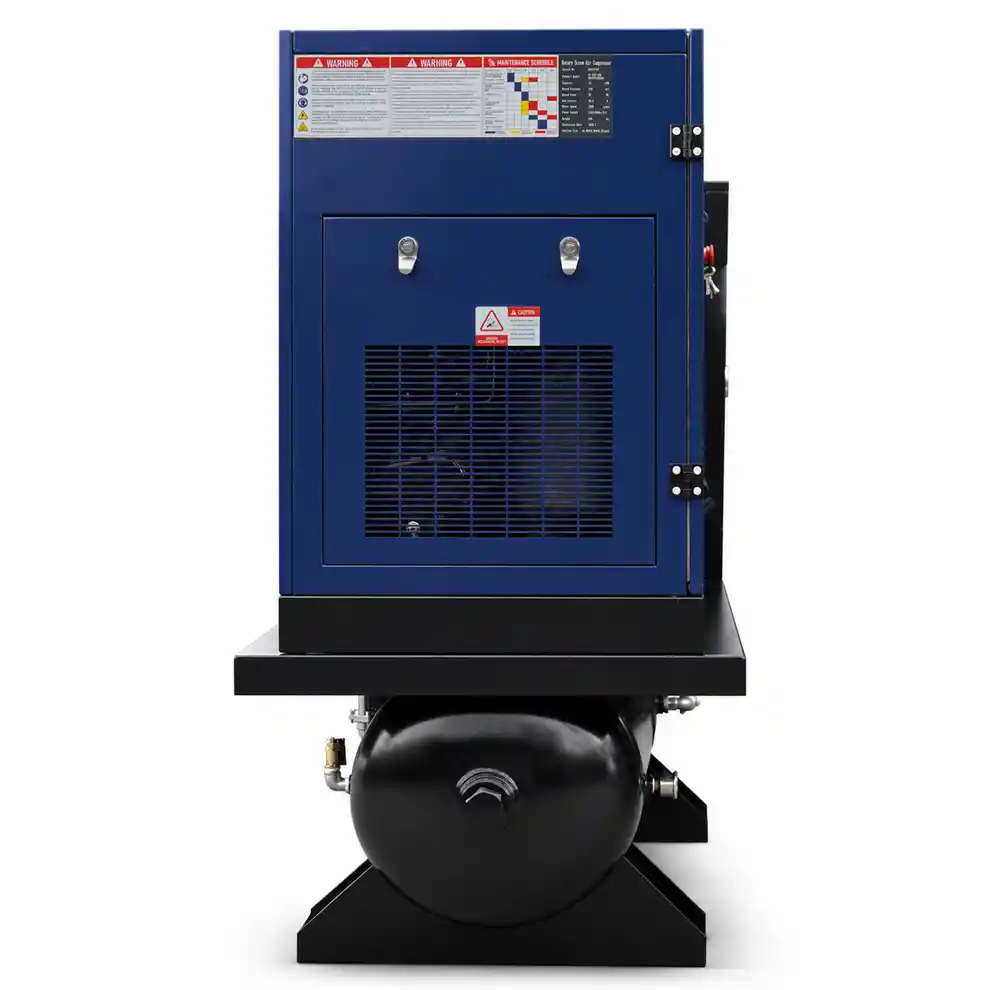

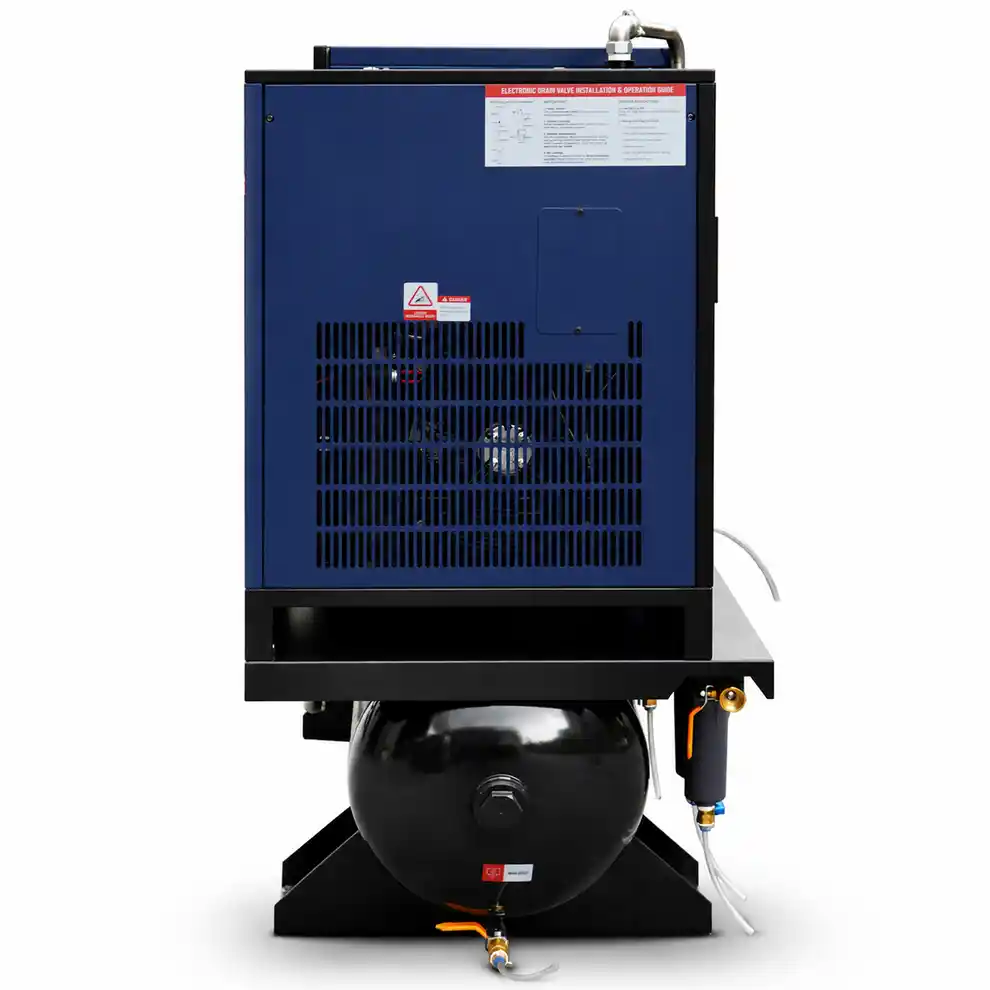

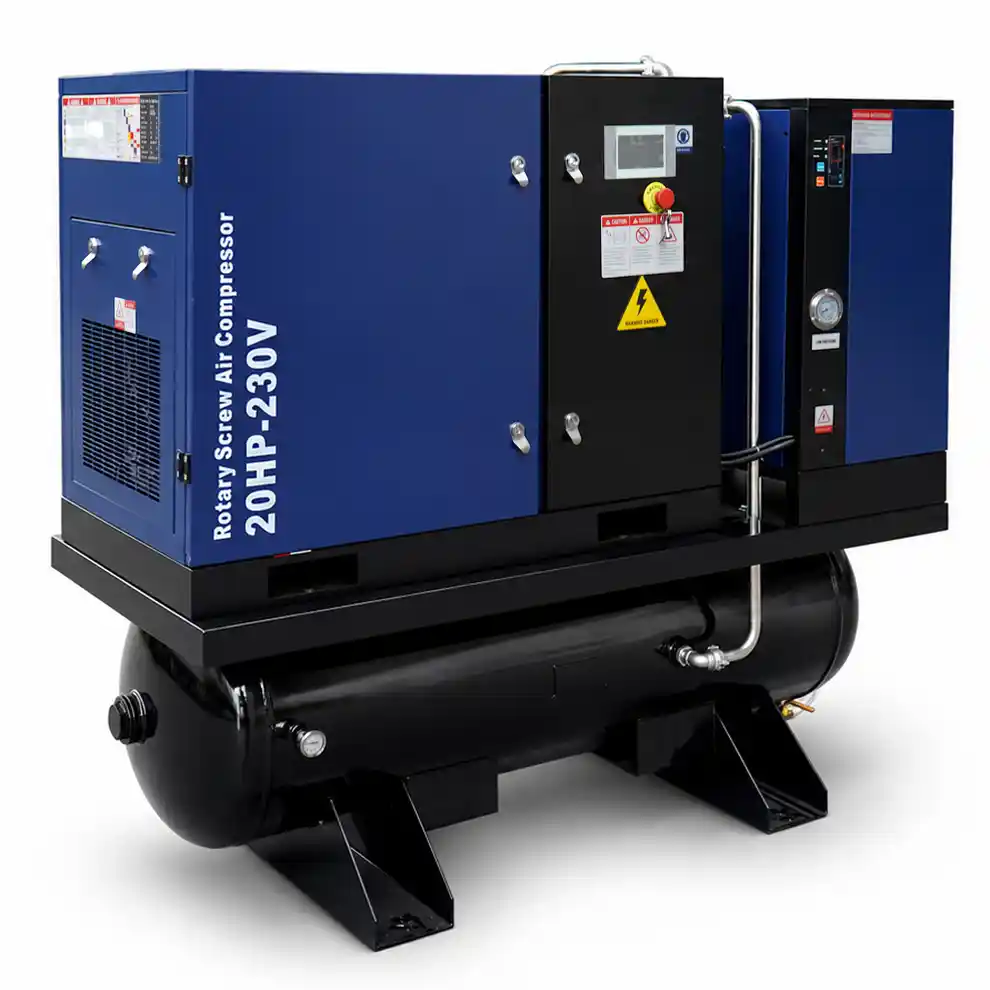

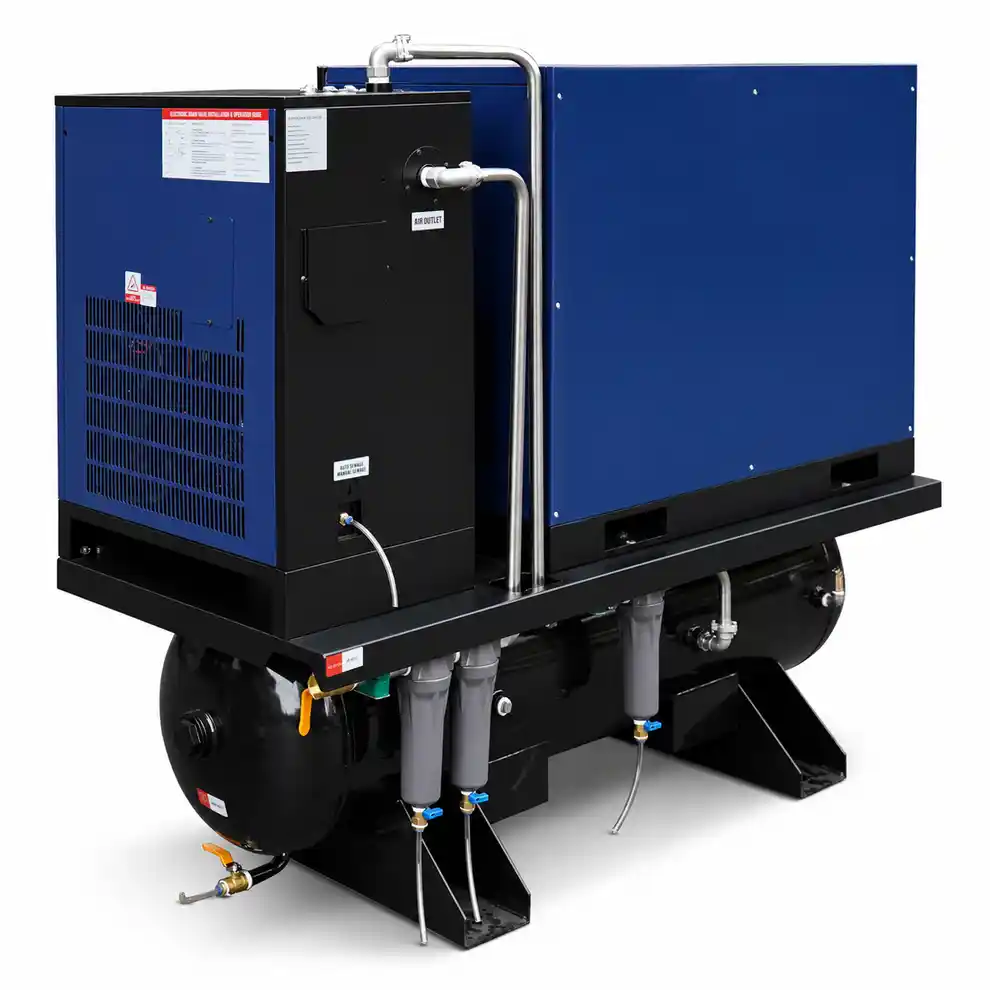

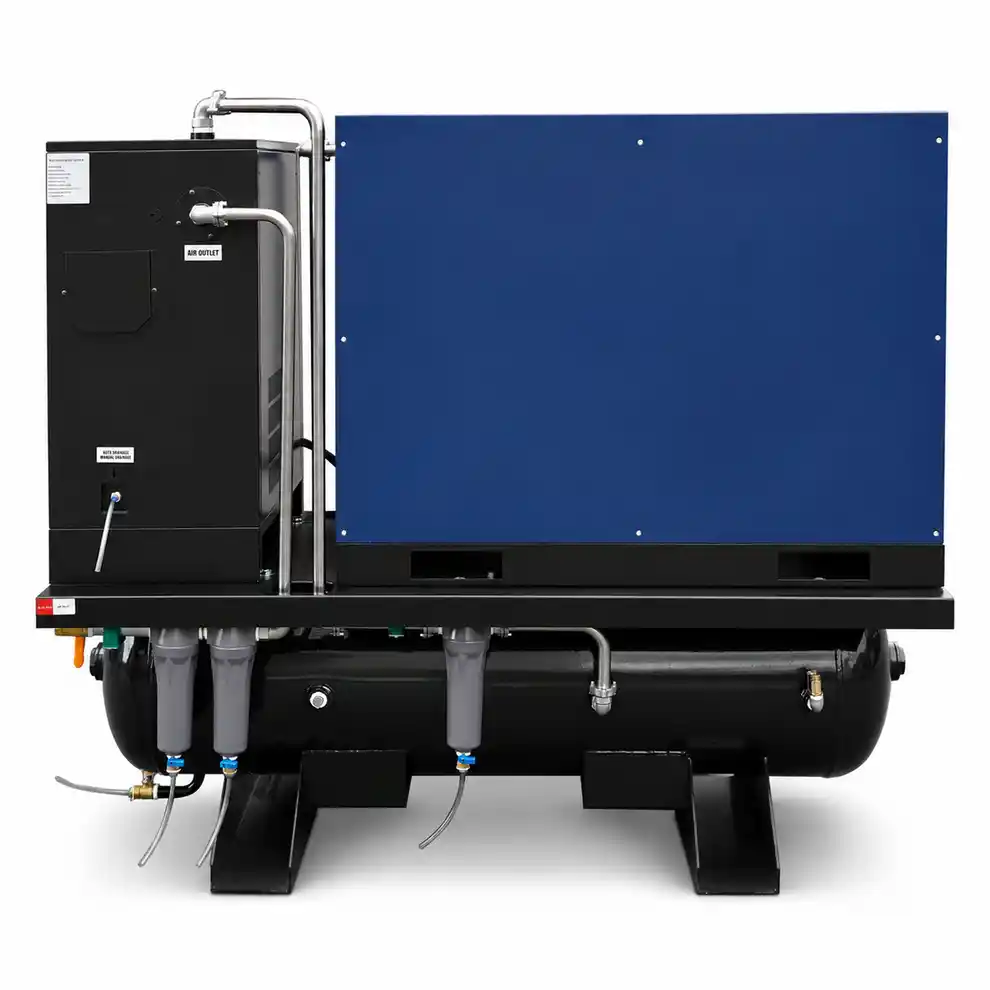

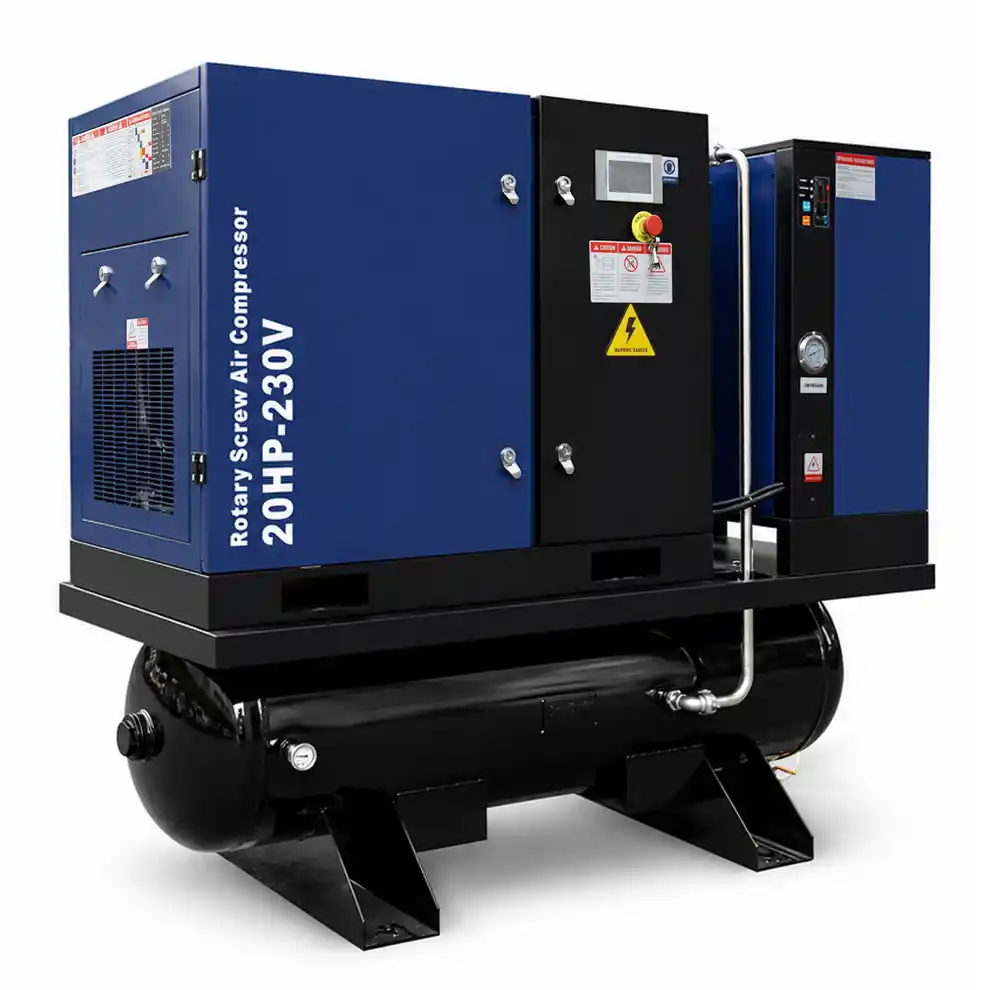

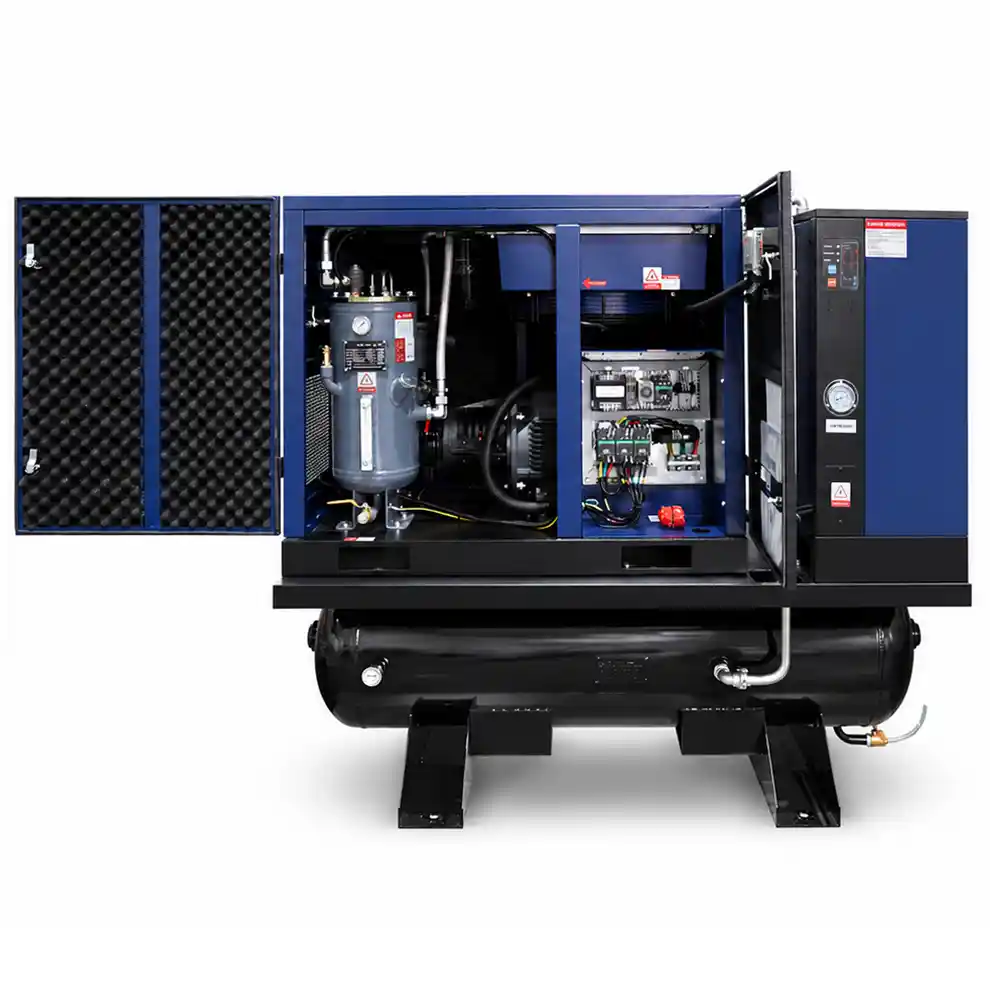

The EverPro 20HP Combined Rotary Screw Air Compressor with Dryer & ASME Tank is a complete all-in-one compressed air solution designed for industrial facilities that require reliable, clean, and dry compressed air. By integrating a 20HP rotary screw air compressor, 260L (68.7 Gallon) ASME-certified air receiver tank, and high-performance refrigerated air dryer into a single unit, this system simplifies installation while maximizing efficiency.
Delivering 74 CFM at 125 PSI, the system is ideal for manufacturing facilities, CNC machining centers, automotive repair shops, metal fabrication plants, woodworking operations, and other demanding industrial environments.
The integrated refrigerated dryer removes moisture from the compressed air stream, helping protect pneumatic equipment and improve production quality. Combined with the ASME-certified air storage tank, the system ensures stable air delivery and optimized performance throughout the workday.
Simply connect power and piping to obtain a complete compressed air system ready for operation.
✔ All-in-one compressor, dryer, and ASME tank package
✔ 74 CFM airflow at 125 PSI
✔ Industrial-grade 20HP rotary screw compressor
✔ 260L (68.7 Gal) ASME-certified air receiver tank
✔ Integrated refrigerated air dryer
✔ Clean, dry compressed air output
✔ Reduced installation costs and footprint
✔ Ideal for manufacturing, CNC, automotive, and fabrication facilities
✔ Factory-direct value backed by EverPro support
| Air Flow Capacity | 74 CFM | Rated Pressure | 125 PSI |
|---|---|---|---|
| Rated Power | 20 HP | Power Supply | 230V / 60Hz / 3-Phase |
| Maximum Current | 55.2 A | Motor Speed | 3515 RPM |
| Compressor Type | Rotary Screw | Configuration | Compressor + Dryer + Tank |
| Air Tank Volume | 260L / 68.7 Gal | Tank Certification | ASME Certified |
| Dryer Capacity | 88 CFM | Dew Point | 37.4°F – 50°F |
| Maximum Working Pressure | 145 PSI | Air Inlet Temperature | ≤140°F |
| Product Dimensions | 66.75 × 29.52 × 61.81 in | Net Weight | 1046 lbs |
| Applications | Manufacturing, CNC Machining, Automotive Repair, Metal Fabrication, Woodworking, Industrial Workshops | ||
US warehouse dispatch, Fulfillment time: 6-10 business days
• LxWxH (inch): 69.29 × 68.70 × 31.89
• Weight (lb): 1237.90
• A forklift or equivalent is required for unloading.
For additional shipping information, please visit our Shipping Policy.
